This Month We're Leveling with You

June 16, 2011
Products to Meet All Your Level Measurement Challenges

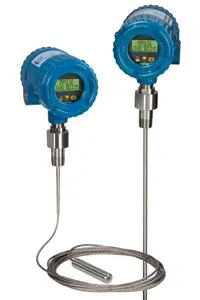

IMPULSIVE LEVEL MEASUREMENT
The Impulse Series guided wave radar level transmitter accurately measures total level, distance or volumetric outputs using time domain reflectometry (TDR). It provides continuous level measurement of liquids to ranges up to 50 ft (15 m), with a two-wire, 4-20mA, HART output signal. Useable in Class I, Div. 1 environments, it works in temperatures from -40 °F to 392 °F (-40 °C to 200 °C).
Ametek Drexelbrook
215/674-1234
www.drexelbrook.com

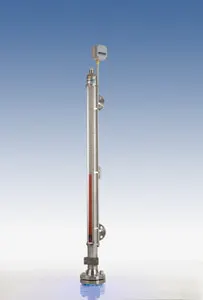

MAGNETIC LEVEL GAUGE
Type 810 magnetic level gauges measure liquids, including corrosives or toxics. They feature sealed measurement chambers of stainless steel, PVC, PPH, PVDF or PTFE. They measure liquid level over ranges from 1 ft to 20 ft and longer with multiple sections of instruments if needed. They  handle fluid temperatures from -256 ºF to 750 ºF, and pressures as high as 3480 psi.
Brooks Instrument
888/554-FLOW
www.brooksinstrument.com
HYDROSTATIC LEVEL PRESSURE TRANSMITTER
The Deltapilot FMB 70 hydrostatic level pressure transmitter for food, beverage, dairy and pharmaceutical applications has a watertight pressure measuring cell and 316L stainless steel housing with polycarbonate sight glass to withstand harsh washdown environments. It measures level in units of pressure, height, volume or mass to 0.1% accuracy and meets 3A sanitary standards.
Endress+Hauser
888/ENDRESS
www.us.endress.com

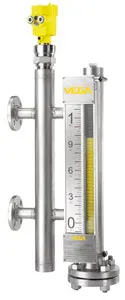

MAGNETIC LEVEL INDICATOR
The Vegamag 62 magnetic level indicator uses a magnetized float to cause a series of metal flags to rotate, indicating the position of the liquid level inside of the chamber. The corresponding bridle houses a Vegaflex guided wave radar, which provides redundant level by transmitting a 4-20mA signal for control. It is an ideal replacement for sight glasses, displacers and DP transmitters.
Vega Americas
800/367-5383
www.vega-americas.com
LIMIT SWITCH FOR LEVEL SENSING
LVL-B Series vibration limit switches for level sensing of bulk solids are insensitive to material build-up, external vibration and flow noise. They are FM- and CSA-certified as dust-ignition-proof (DIP) for Class II and Class III, Divisions 1 and 2, Groups E-G. They have a 250-mm (10-in.) vibrating rod, and are available with 500-mm (20-in.), 1000-mm (40-in.) and 1500-mm (60-in.) extension pipes.
Pepperl+Fuchs
330/486-0002
www.pepperl-fuchs.us
DIN-MOUNTED LIQUID LEVEL CONTROL
The Model WFLTV-DM-6011 DIN-mountable, liquid-level control replaces three two-level controls in a compact DIN mounting package. Using patented, intrinsically safe sensing circuitry, this product is UL-353-recognized for primary safety device applications. Up to six probe inputs can be connected to the 601 series for reliable, multi-level, multi-tank operation.
Lumenite Control Technology
800/323-8510
www.lumenite.com
SCALABLE TANK GAUGING
The Raptor tank-gauging system consists of a complete range of tank-gauging instrumentation, including non-contact, radar-level gauges, temperature and pressure transmitters, plus water interface sensors and inventory-management software. The design is based on open technology, and is fully scalable with functionality and scope that can be adapted to any application and performance class.
Emerson Process Management
www.Rosemount-TG.com
RADAR ON THE LEVEL
The MT5000 Series of guided-wave radar transmitters is certified for use in Safety Integrity Level 2 and 3 (SIL 2/3) applications. It features an integrated graphic display and a user-friendly setup menu in a wide range of languages. A concentric waveguide directs the radar beam, alleviating divergence problems and echoes from tank walls and surrounding structures.
K-Tek
225/673-6100
www.ktekcorp.com

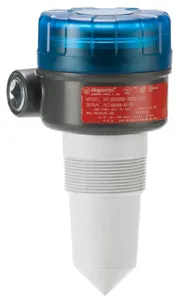

ECONOMICAL RADAR TRANSMITTER
Model R82 is the first $995 radar transmitter. This loop-powered, non-contact, 26-GHz, transmitter brings radar to everyday applications. It  measures up to a 40-ft (12-meter) range, and provides unsurpassed ease of configuration with either the menu-driven, four-pushbutton, two-line by 16-character display, HART digital communications or PACTware, allowing complete configuration via the local user interface, or remotely.
Magnetrol Environmental
630/969-4028
www.magnetrolenvironmental.com

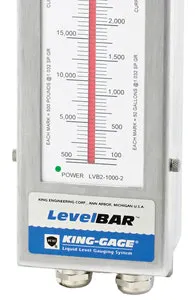

HIGH-VISIBILITY LEVEL INDICATOR
The King-Gage LevelBAR v2 displays high-visibility, continuous indication of tank liquid level. Package includes a graduated scale in units of total volume or weight based on actual tank capacity; high-intensity LED segments and backlighting for use in many ambient conditions; 4-20mA input with loop status and fault (short) indicators to simplify installation; and troubleshooting with two wire transmitters.
King-Gage Systems
800/242-8871
www.king-gage.com
RADAR-BASED SOLIDS MEASUREMENT
The Sitrans LR560 is the world’s first 78-GHz (W Band) microwave radar level transmitter for solids level measurement. It uses non-contacting, frequency-modulated, continuous wave radar technology. It is ideal for most solids applications, including those with extreme dust and temperatures to +200 ºC (+392 ºF). It is available with HART, Profibus PA or Foundation fieldbus protocol.
Siemens Industry Automation
www.automation.siemens.com

LOW-COST ULTRASONIC LEVEL TRANSMITTER
The Optisound VU30 ultrasonic transmitter provides a reliable and accurate (0.15%) continuous liquid level measurement to ranges up to 30 ft. (9.1 m), with a two-wire, 4-20mA, HART output signal. It is made of CPVC for use in Class I, Div. 1 environments with intrinsically safe or explosion-proof installation requirements. Its temperature range is -40 °F to 158 °F (-40 °C to 70 °C).
Krohne
800/FLOWING
www.KROHNE.com/northamerica
