All Flow Products All the Time

Feb. 1, 2012
Check Out Some of the Latest in Flow Instrumentation Technology
PADDLE-WHEEL FLOWMETER
The DOR series insertion paddle-wheel flow sensor measures the flow of water or water-like liquids in large pipes. The insertion type design is much less expensive than full bore flowmeters, especially in larger pipes. The DOR series features 316L stainless-steel construction and is available with a blind pulse transmitter, battery or loop power, and is tolerant of liquids containing dirt and solids.
Kobold
412/788-2830
www.koboldusa.com
ATEX-APPROVED PORTABLE FLOWMETER
Fluxus F608 and G608 portable gas and liquid flowmeters are covered by ATEX certification (EX II3G). They have a carbon-fiber housing, together with a rugged transducer design that ensures high-impact protection and resistance against oil, water and other liquids. They are useable in pipes from ½ in. to 21 ft inner diameter and temperatures ranging from -250 °C to 750 °C.
Flexim
631/ 492-2300
www.flexim.com
COST-EFFECTIVE MAG METERS
M-5000 and M-2000 are two cost-effective, electromagnetic flowmeters. The M-5000 is a battery-operated, general-purpose mag meter in a standalone package. It is ideal for remote settings without access to power. M-2000 delivers precise flow measurement on potable meter lines, in fluids with suspended solids, and most applications requiring exacting measurement.
Badger Meter
800/876-3837
www.badgermeter.com
PORTABLE FLOWMETER
DXN portable ultrasonic flow and heat meter is built using hybrid technology that automatically switches between transit-time and Doppler modes. It has a 7-in, full-color touchscreen and an advanced software interface. It’s available in multiple configurations from a basic kit with two sets of transit-time transducers, cabling and a carrying case to one that includes transit time, Doppler, RTD and more.
Dynasonics
800.535.3569
www.dynasonics.com
ELECTROMAGNETIC FLOWMETER
WaterMaster flowmeters are available in sizes from 1.5 in. to 84 in. For popular sizes up to 8 in., the new unit incorporates an innovative octagonal sensor design. They have a rugged, robust construction to ensure a maintenance-free life. The sensors are inherently submersible (IP68, NEMA 6P), ensuring suitability for installation in any environment liable to flooding.
ABB
800/829-6001
www.abb.com/instrumentation

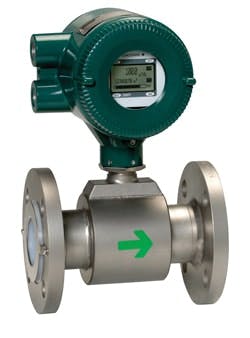

MAGNETIC FLOWMETER
Admag AXR magnetic flowmeter is available in line sizes from from 1 in. to 8 in. AXR two-wire meter employs the advanced “dual frequency excitation” method, which cancels process generated noise without sacrificing response time. It can be installed in a loop-powered system, which eliminates the need for a second conduit run, extra wiring, a separate power supply and additional engineering.
Yokogawa Corp. of America
800/888-6400
www.yokogawa.com/us
MASS FLOWMETER FOR GASES
The new GF40/80 a is high-performing, reliable and flexible mass flowmeter/controller for many gas flow applications. At the heart of the GF40/80 is MultiFlo gas and range programmability, making it perfect for customers who use mass flowmeters/controllers on a variety of gases, need to change gas type frequently, or need to re-range while preserving gas measurement and control accuracy.
Brooks Instrument
888/554-3569
www.BrooksInstrument.com
MULTICHANNEL TRANSMITTER/CONTROLLER
The MultiCell Type 8619 multi-channel controller for water treatment, food and pharmaceutical applications can indicate flow, or measure the ORP value or percentage retention value. It can also be used to regulate pH value, the dosing of chemicals and ratio control. The standard version includes the user interface, the mainboard and AC adapter, two analog and digital outputs and two digital inputs.
Burkert Fluid Control Systems
800/325-1405
www.burkert-usa.com
NEW FLOW TECHNOLOGY
Sonartrac flow technology is a new class of non-intrusive flow monitoring systems that make no contact with the liquid or slurry, and can be removed and reinstalled without process interruption. They have superior performance levels in the presence of highly variable fluid properties. Their high level of accuracy (within 1%) allows them to play a dual role in flow measurement and leak detection.
CiDRA
203/265-0035
www.cidra.com

SHED THAT VORTEX SAFELY
CoolPoint vortex-shedding flowmeters have an intrinsic safety option. They are electronic instruments that have no moving parts to stick or coat, eliminating potential for clogging. The transmitter with intrinsic safety is two-wire and 4-20mA with approved barriers and no display, alarm or pulse output. It conforms to requirements for NEC Class I, Division 1, Group D environments.
Universal Flow Monitors
248/542-9635
www.flowmeters.com

VARIABLE-AREA FLOWMETERS
The P-Series variable area flowmeter line enhances Parker’s existing Rotameter product lines. The range includes gas flows up to 350 sft3/m (9910 slpm) of air; liquid flows up to 450 US gpm (1700 lpm) of water; pressures up to 4000 psig (275 bar); temperatures up to 575 °F (300 °C); NEMA and IP enclosures; and certified calibrations conforming to ISA RP 16.6, NIST- traceable.
Parker Porter Instrument Division
www.Parker.com/porter
THE LATEST IN ULTRASONIC FLOWMETERS
The new FDT-21 ultrasonic flowmeter is designed to measure the fluid velocity of liquid in a full/closed pipe, with accuracy of 1% and repeatability of 0.2%. It also features a positive, negative and net totalizer. The four-line LCD display makes reading the measurements easy. The FTD is perfect for monitoring liquid flow in manufacturing, chemical treatment, automotive and biological applications.
Omega Engineering
800/TC-OMEGA
www.omega.com

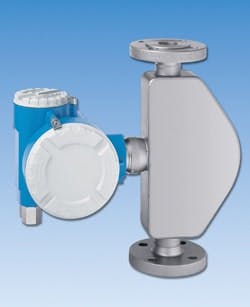

CORIOLIS FLOWMETERS FOR CUSTODY TRANSFER
The CNGmass Coriolis flowmeter series is approved by NTEP and five other standards organizations for custody transfer of compressed natural gas (CNG) and fueling vehicles with CNG. It measures mass flow up to 330 lb/min (150 kg/min) at fluid temperatures up to 257 ºF (125 ºC) and pressures to 5080 psi (350 bar). It is approved for use in hazardous areas by UL, ATEX, FM, cCSAus and NEPSI.
Endress+Hauser
888/ENDRESS
www.us.endress.com

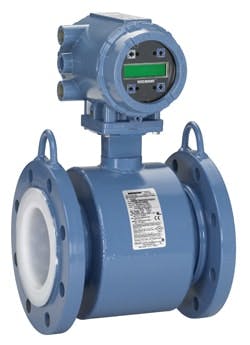

SMART METER VERIFICATION
Smart Meter Verification technology is now available in Rosemount magnetic flowmeters. It delivers complete, on-line verification of device performance, eliminating process interruption. It is embedded in the transmitter to verify calibration and the complete health of the sensor, electronics and analog loop. It can run continuously in the background or on demand.
Emerson Process Management
800/999-9307
www.emersonprocess.com/rosemount
MAGNETIC FLOWMETERS
The Nor-Mag magnetic flowmeter measures electrically conductive liquids in industrial applications. It’s an AC/DC-powered meter for flow rates in water, heat and supply systems, and chemical and food
processing applications. Integral electronics provide rate and total, as well as functions for liquid batching control, detection for empty piping, internal meter status diagnostics and more.
Hoffer Flow Controls Inc.
800/628-4584
www.hofferflow.com
IN-LINE PROCESS RHEOMETER
The Viscoline In-line Process Rheometer provides continuous, in-line, measurement of fluid viscosity. It can be used for a variety of Newtonian or non-Newtonian applications, including emulsions, cosmetics, shampoos, ketchup, yogurt, sauces, cheese, paint, resins, oil, plaster, and more. It has a repeatability of 0.2%, resolution to 0.1cP and meets government policy on metrological traceability.
Krohne
800/FLOWING
www.Krohne.com/northamerica

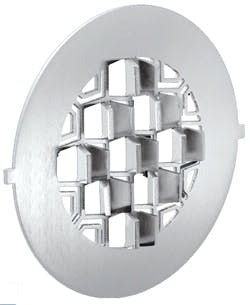

FLOW CONDITIONER VIDEO
A new video features the flat panel Vortab VIP Flow Conditioner that maximizes air/gas flowmeter measurement performance accuracy with a design that significantly reduces flowmeter straight-run requirements. It is made of 316L stainless steel for pipes from 2 in. to 40 in. diameter (50 mm to 999.9 mm), and is available in both ANSI and DIN flange-mount or weld-in-place configurations.
Fluid Components International
800/854-1993
www.fluidcomponents.com

CORIOLIS FLOW SENSOR
The VersaFlow Coriolis 1000 Mass Flow Sensor has a straight measuring tube that is available in Hastelloy, titanium or stainless steel. VersaFlow reliably measures mass flow, density, volume, temperature, mass or volume concentration and solids content. The TWC 9000 converter allows easy selection for the output options required and fits various housing configurations.
Honeywell
800/343-0228
www.honeywell.com/ps/hfs
