|PRESSURE MEASUREMENT MADE EASY
Model 266 pressure transmitters, with pressure ranges up to 15.000 psi and maximum working pressure up to 8,700 psi, are easy to use thanks to their new keypad-equipped HMIs. The TTG (through the glass) version allows full explosion-proof transmitter configuration in hazardous areas without the need of removing the housing cover., reducing commissioning and maintenance costs.
PAD is a heavy-duty, microprocessor-based, high-performance industrial differential pressure transmitter with a user-adjustable pressure range and scalable output signal. Communication and conﬁguration of various parameters is possible via HART protocol. All data is stored via EEPROM. It's available with either a capacitance-type or a piezoresistive absolute pressure sensor.
|SENSORS FOR HYDRAULIC APPLICATIONS
PS500 series pressure sensors for hydraulic applications feature a IP69K-rated design to withstand harsh environments and a rotatable housing for easier installation and accessibility. It's measuring range is from 3 to 400 bar. Switch point accuracy is 0.5% of the full scale. It's available in male or female 1/4-in. NPT or G 1/4-in. thread versions with digital or analog (voltage or current) outputs.
|TUBELESS DP SENSOR

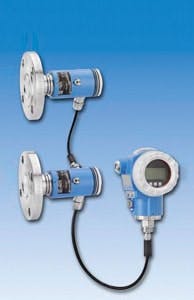

Deltabar FMD72 electronic differential pressure measurement system uses two pressure sensor modules connected to one transmitter. Not needing impulse lines or capillaries, the sensors connect to the transmitter via a twisted-pair cable. The system has NEMA 4X/6P (IP66/IP68) watertight housings and connections, and is ATEX-, IEC Ex-, CSA- and FM-compliant for hazardous areas.
|THE ONE FOR SAFETY
One Series safety transmitters monitor temperature and pressure, providing a NAMUR 4-20 mA output. An internal high-speed safety relay can initiate an alarm or emergency shutdown directly from the instrument, using built-in sensor and logic solver functions. It's certified for use in SIL 2 applications and capable of SIL 3 with redundancy, achieving a safe failure fraction of 98.5% .
United Electric Controls
|CALIBRATION UNDER PRESSURE
M4 Series handheld precision calibrator/data logger includes one pressure sensor and one mA/V instrument. Choose from differential, gauge, compound or absolute pressure types and ranges from 10-in. H2O to 3300 PSIG full scale. Accuracy is ±0.025% of reading from 10% to 100% of range and ±0.002% of full scale below 10% of range. Accuracy ranges from -20º to +50 ºC (-4º to +122 ºF).
|SENSE THE PRESSURE
Model 40 pneumatic indicating controller is designed to sense pressure and transmit an air signal precisely proportional to the measured variable. The output signal can be fed to a remotely located final control device. It has a broad selection of control modes; measuring elements for pressure, differential pressure, flow and level; and complies with the EPA's “Go Green” initiative.
Ametek PMT Products
The ProSense MPS25 series mechanical pressure switches come with a choice of an all-welded, 316 stainless steel sealed diaphragm actuator or a direct-acting 316 stainless steel piston design with a Buna N O-ring and a choice of an integral 6-ft. cable with ½-in. NPT male conduit connector or a DIN 175301-803C L-connector. It handles pressure ranges from vacuum to 7,500 psig.
|FAST AND TOUGH
PX409-USBH series high-speed pressure transducers connect directly to computers and feature excellent long-term stability, 316L SS wetted parts, 1,000 readings per second and rugged construction with a secondary containment. The micro-machined silicon design is suitable for pressure or level applications in laboratory, test platform or bio-pharmaceutical applications.
|ALL IN ONE
The PBS electronic pressure sensor for monitoring and measurement in liquids and gases houses the pressure switch, transmitter and display in one device with three large pushbuttons and an integrated display for intuitive setup. It has a base configuration with two switching points, but also is configurable using PNP/NPN digital outputs or an analog output signal.

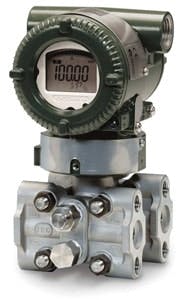

DPharp EJA series pressure/DP transmitters simultaneously measure differential and static pressure. They have a 90-ms response time. The optional ultra-low-copper, aluminum housing provides improved corrosion resistance over standard aluminum. They're IEC61508-compliant and certified for SIL 2 level applications, including hydrostatic tank gauging.
PT-500 submersible pressure transducers are now available with added output, cabling, cage, vent cap and installation options. In addition to a 4-20 mA output, they're now available with Modbus as well as 0-5 Vdc and mV/V. A new Hytrel cable option enables their use in the most challenging environments. Choose between a traditional cage or a patented removable cage that can be reused.
Automation Products Group
|GET A HANDLE ON THIS
A new ergonomic handle, smoother operation and lower torque are available on these 20,000-psi, medium-pressure valves in sizes 1/4-in., 3/8-in. and 9/16-in. Also available with 15,000-psi NPT connections in sizes ¼-in., 3/8-in. and ½-in., these medium-pressure components use a compact, coned-and-threaded connection for larger bore sizes and increased flow rates common in this pressure class.
High Pressure Equipment Co.
|MO' BETTER PRESSURE SWITCHES
Honeywell has added three new series to its pressure switch portfolio: HP Series, HE Series and LE Series. They provide high burst pressure ranges, long lifecycle ratings and IP67 sealing. Adaptable for use in most applications, these pressure switches provide a wide temperature range of -40 °C to 120 °C (-40 °F to 248 °F), and accuracy up to ±2%.
Honeywell Sensing and Control
|INDUSTRIAL-STRENGTH PRESSURE SENSING
Ashcroft A2, A2X and A4 pressure transmitters are accurate, rugged, reliable heavy-duty sensors. Available in accuracies up to ±0.25% FS, A2 is offered with a wide variety of electrical connections, analog output signals and pressure ports for most industrial applications. A2X (explosion/flame-proof) and A4 (intrinsically safe) configurations are designed for hazardous environments.
SolidSense II pressure transducers and transmitters with glass-fused strain gauge technology reduce drift or zero instability. A 316L stainless steel, chromium-rich wetted flow path offers superior corrosion resistance. Active temperature compensation improves process pressure measurement in plants exposed to wide temperature variations. FM- and ATEX-compliance meets demanding applications.
|TWO FOR ONE

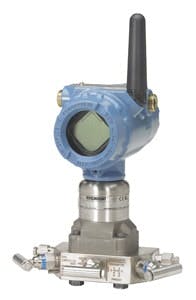

Rosemount 3051S multivariable wireless pressure transmitters directly measure two process variables in one installation. They measure both differential and static pressure, reducing pipe penetrations and impulse piping. The static pressure sensor is available as either true gauge or absolute. Maintenance-free performance is provided by 10-year stability and a 6.5-year power module life.
Emerson Rosemount Measurement
To service surface and subsea installations, process instrumentation and controls, chemical injection and testing equipment, and sampling applications, IPT series medium- and high-pressure products include precision valves, fittings and fluid control devices. Products in the IPT series are made standard from 316 stainless steel, cold-worked to maximize strength and corrosion resistance.
