Taking Your Temperature

Sept. 22, 2011
All the Tools You Need to Control the Heat

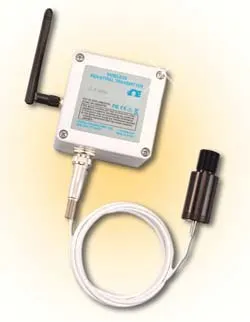

WIRELESS INFRARED SENSOR
This infrared sensor with wireless transmitter features a remote IR sensor and radio wireless transmitter in a NEMA enclosure. It transmits process temperature, ambient temperature, signal strength and battery status, and has an adjustable emissivity from 0.10 to 1.0, and one receiver has the ability to work with up to 48 transmitters. The low-power operation allows for a long battery life.
Omega
800-TC-OMEGA
www.omega.com

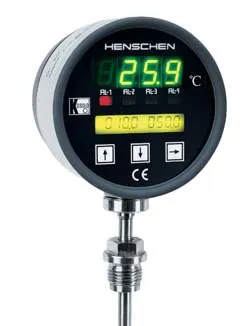

INDUSTRIAL-STRENGTH TEMP SENSING
Kobold DTM digital temperature gauge comes standard with a highly visible four-digit local display and analog output. Setpoint relays are available as an option. The SPDT relays come in pairs of two or four switches. Setpoints and hysteresis are fully adjustable via the front keypad. These meters feature 316-Ti SS wetted parts with 304 SS enclosures.
Kobold
412/788-2830
www.koboldusa.com

MONITOR TEMPS AND MILLIVOLTS
Snap-AITM-4i thermocouple and millivolt input module for industrial temperature monitoring and DAQ enables more accurate temperature readings, faster installation, and eliminates the need to purchase thermocouples with built-in isolation. It accepts up to four inputs from a wide range of thermocouples. All four channel inputs are individually configurable and channel-to-channel isolated.
Opto22
951/695-3000
www.opto22.com

MULTI-CHANNEL TEMPERATURE TRANSMITTER
Temperature Concentrator System (TCS) concentrates up to 32 signals onto one twisted-wire pair. The system provides a precision measurement at less than 25% the cost of comparable, standalone, smart temperature transmitters. It accepts any combination of RTD, T/C, mV and resistance/potentiometer signal inputs, converts the inputs to the HART protocol, and transmits the data over a twisted-wire pair.
Moore Industries-International
818/894-7111
www.miinet.com

INFRARED TEMPERATURE SENSOR
Gold Series single-wavelength, infrared temperature sensors provide up to 0.25% of reading measurement accuracy. Configurable for applications where devices such as thermocouples and RTDs would be inaccurate, too slow or difficult to use, they measure a target’s temperature without contact, making them ideal for high-temperature environments, moving targets and fast response times.
Williamson Corp.
978/369-9607
www.williamsonir.com

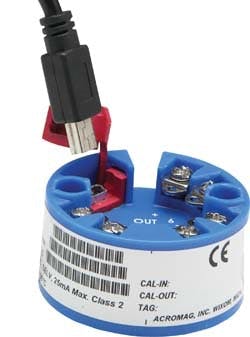

THERMOCOUPLE SIGNAL CONDITIONER
ST133 isolated thermocouple/millivolt signal conditioner converts sensor input signals from eight thermocouple types or a ±100mV range, and outputs a proportional 4-20mA process control signal. The 1500-V isolation between the input and output circuit shields equipment from high-voltage surges and transient signals. Units support mounting in DIN Form B sensor heads or on a DIN rail.
Acromag
248/295-0880
www.acromag.com

THERMOCOUPLE MODULES
The 8B isoLynx SLX300 data acquisition system is designed for maximum signal protection, flexibility and reliability. SLX300 can be configured using any of 123 different 8B modules, including  8B34/35/37/47 temperature models. For the most demanding applications, SLX300  comes in a low-profile, instrument-quality metal enclosure with 1U height.
Dataforth
800/444-7644
www.dataforth.com

NON-INTRUSTIVE TEMPERATURE MEASUREMENT
Rosemount Pipe Clamp Sensor provides non-intrusive temperature measurement. It is completely configurable to any process, features easy installation, fast and reliable measurement, and a selection of pipe clamp sizes and materials. It is ideal where non-intrusive measurements are preferred, such as flows with heavy fluids, high velocities, paraffin buildup or frequent maintenance and cleaning.
Emerson Rosemount
800/999-9307
www.rosemount.com/temperature

24-VDC TEMPERATURE CONTROLLERS
Solo 24-VDC-powered process/temperature controllers are available in four standard DIN sizes. These single-loop units are equipped with a dual four-digit, seven-segment display, and offer dual output control, making them ideal for managing heating and cooling processes. The built-in auto-tune function with PID control feature allows for fast and easy startups.
Automation Direct
770/889-2858
www.automationdirect.com

TEMPERATURE CALIBRATORS
Jofra Professional Temperature Calibrators (PTC) series has an intuitive easy-to-use interface, and an active dual heating zone system that provides high-temperature uniformity in the insert, no matter the number or size of the sensors immersed. It also features unique, intelligent sensors for plug-and-play connectivity, a full-color VGA display and a USB connection.
Ametek Test & Calibration
800/527-9999
www.ametekcalibration.com

SMART TEMPERATURE TRANSMITTERS
STT250 smart temperature transmitters convert low-level inputs from a variety of temperature sensors, such as RTDs/TCs, into current output, and are capable of transmission over long distances through noisy plant environments. They come with several communication options, including 4-20 mA analog output, HART Protocol Version 5/6 and DE Protocol.
Honeywell Process Solutions
800/343-0228
www.honeywellprocess.com

EXTREME TEMPERATURE MEASUREMENT
ISR 6 Advanced is a non-contact pyrometer that’s well-suited for the steel and metals, silicon, glass and cement manufacturing industries. It has temperature ranges between 600 ºC and 3,000 ºC, making it suitable for very very high-temperature applications, such as induction heating, annealing, welding, forging, melting, sintering or growing crystals.
LumaSense Technologies
800/631-0176
www.lumasenseinc.com

DX SERIES MICROSCANNER
The DX-Series is designed for the highest accuracy, it is the only infrared instrument which can be certified with NIST - traceable accuracy on real surfaces of unknown emissivity, while remaining completely free of the contact errors and heat sinking errors of contact devices.
Exergen Corporation
617/607-0038
www.exergen.com/industrial/dxseries/index.html
