Advantech’s Energy Star-compliant TPC-1551H 15-in. touch panel computer with an Intel Atom processor has been designed to work in temperatures as low as -20 °C (-4 °F) and as high as 60 °C (140 °F), making it ideal for machine and factory automation and power and energy industries. The unit is very thin at 58 mm (2.29 in.) It supports Windows 7, Windows XP embedded, WinCE and Linux software.
Advantech Industrial Automation Group
800/205-7940
www.advantech.com/ea
Moxa’s ioLogik E2210 is an Ethernet micro-RTU controller that uses proactive, event-based reporting to control I/O devices. Moxa’s Active OPC Server makes seamless connection with SCADA systems a reality. In addition, SNMP is used for communicating with a network management system for IT field users. It offers active messaging with real-time stamp, including SMS, SNMP Trap with I/O status, TCP and email. It also has an I/O peer-to-peer function and Windows/WinCE VB/VC.NET and Linux C APIs.
Moxa
888/669-2872
[email protected]
DX Series microscanners are the only certifiably accurate, NIST-traceable infrared temperature instruments in the world. Designed for the highest possible accuracy, it is the only infrared instrument that can be certified with NIST-traceable accuracy on real surfaces of unknown emissivity, while remaining completely free of the contact errors and heat sinking errors of contact devices.
Exergen Corp.
617/923-9900, Option #4;
www.exergen.com/industrial/dxseries/index.html
WDK 10 dual-level terminal is designed to reduce cabinet space by 50%. It is only 10-mm wide, and it offers one of the highest wiring densities among screw terminals for power distribution applications requiring 6AWG conductors. It features vibration-proof, maintenance-free, self-locking screw clamp termination technology, and it is electrically rated for 600V/64A/18-6AWG to UL and CSA standards.
Weidmuller
800/849-9343
www.weidmuller.com

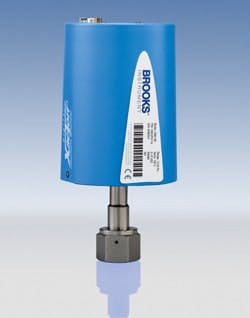

CNC and XacTorr Series digital capacitance manometers improve measurement reliability, minimize drift, resist diaphragm contamination and minimize thermal effects in vacuum measurement applications. In addition, the CNC’s compact, unheated gauges are available in full-scale ranges from 10 torr to 1000 torr, while XacTorr manometers are premium, heated gauges that use patented dual-zone heating to ensure 0.1 ºC temperature uniformity.
Brooks Instrument
215/362.3527
www.brooksinstrument.com
Sitrans P500 pressure transmitters combine a response time of 88 ms and an accuracy of 0.03. They have a reference accuracy of 0.03% and a turndown of 200:1, and handle maximum temperatures of 125 °C (257 °F). Temperature compensation and a separate static pressure sensor minimize temperature and pressure errors. They also feature long-term stability of 0.05% over five years. They measure 3.4 in. x 7.4 in. x 5.5 in. and weigh 7.3 lbs.
Siemens Industry
www.siemens.com/sitransp
The mGuard security devices provide all-in-one routing, firewall and VPN capability in rugged, industrial hardware. The GT/GT variants support speeds up to 1 gigabit. These variants support fiber as well as copper connections, making them ideal for applications covering distances >100 meters or in electrically noisy environments. Because they use SFP connectors (sold separately), a single GT/GT can work with single, multimode or long-haul fiber.
Phoenix Contact
800/322-3225
www.phoenixcontact.com/mguard
zONeGuard provides a security solution for industrial communication networks that ensures data encryption and authentication. The patent-pending system consists of a single host device combined with multiple remote devices. The host device is simple to interface with both current and legacy data acquisition systems and may be used with existing virtual private networks. Its intrusion detection system provides operators with a powerful method of detecting and reporting attempted system intrusions.
Elecsys Corp.
913/647-0158
www.elecsyscorp.com
Foxboro PH12 Series precision electrochemical sensors provide unique electrode technology in the 12-mm form factor. They have a durable PEEK body for strength and chemical resistance; high-temperature capability to 125 °C; greatly expanded range of applications for flat glass; non-metallic wetted parts for immunity from most process fluids; domed glass electrodes for very wide range (-25 °C to +125 °C) and very high temperature (140 °C). They are biocompatible and 3-A sanitary-compliant.
Invensys Operations Management
http://iom.invensys.com/EN/Pages/Foxboro.aspx
Upgrades to the SEL-3620 Ethernet Security Gateway firewall and access control solution for substations and industrial environments include centralized, user-based access controls to serial intelligent electronic devices (IEDs), Ethernet IEDs and protection devices downstream of the SEL-3620. It generates complex passwords. Automatic password management supports regular IED password changes on a user-configurable schedule or a triggered basis.
Schweitzer Engineering Laboratories
509/332-1870
www.selinc.com
Triton TR8 analyzer measures suspended solids or turbidity at levels greater than 500 NTU, with output available in multiple units, including 0.00-9999 FNU, 0.00-9999 ppm, 0-300g/l and 0-200%. Meanwhile, TR8 TA sensor has an error rate of less than 5% of reading. Its sensor electronics constantly adjust to suspended solids and turbidity signal readings versus the reference detector. It is factory-calibrated in FNU (formazine nephelometric units) and is plug-and-play.
Electro-Chemical Devices
800/729-1333
www.ecdi.com
Rittal’s new Hygienic Design (HD) enclosures provide the ultimate solution where cleanliness and sanitation are paramount. Crafted of stainless steel, they feature a smooth surface grain, internal hinges, washable gaskets, locks and no crevices to trap debris or contaminates. They are available with screw covers for smaller, integrated applications or hinged doors for larger installations. Both are made of ANSI 304 stainless steel. They have angled wall and door surfaces, so water runs off easily.
Rittal
800/477-4220
www.rittal-corp.com
With recent rate increases in the price of Halocarbon oil, the cost of liquid-filled gauges has increased significantly. To avoid overspending, Ashcroft pressure gauges equipped with PLUS! Performance will eliminate the need for an expensive liquid fill while still controlling pointer flutter due to pulsation and vibration. The option is available on a variety of Ashcroft pressure gauges in a broad choice of service types, sizes and configurations.
Ashcroft
800/328-8258
www.ashcroft.com
The Engineer’s Guide to Interface Technology, version 3.1, is a 700+ page guide to Pepperl+Fuchs’ family of intrinsic safety, surge protection, HART interface and signal conditioner solutions. Nearly 100 pages are dedicated to educational resource material, including illustrated and technically substantive content on the principles of field signals, explosion protection and intrinsic safety, functional Safety (SIL) and applications and practical solutions.
Pepperl+Fuchs
330/486-0002
www.pepperl-fuchs.us
Stride Ethernet products includes industrial-grade unmanaged Ethernet switches and media converters. All models feature multiple 10/100BaseT RJ45 Ethernet ports, while several also include an ST type fiber-optic connection. Some units have an SC fiber-optic connector. Plastic case models are designed for standard temperature range (-10 °C to +60 °C) while aluminum case models are designed for wider temperature range (-40 °C to +85 °C). Prices start at $99.
Automation Direct
770/889-2858
www.automationdirect.com
The Series AT1ADPS Atex-approved adjustable differential pressure switch is designed for pressure, vacuum and differential pressures. The dual-scaled adjustment knob in inches water column and Pascal allows changes to the switching pressure to be made without a pressure gage. It is available with settings from 0.08" w.c. (20 Pa) to 16" w.c. (4000 Pa). It has a silicone diaphragm and PA 6.6. Flame-proof ATEX enclosures are available.
Dwyer Instruments
800/872-9141
www.dwyer-inst.com
The SNAP-OMR6-A and SNAP-OMR6-C power relay output modules offer four separate channels of switching for up to 250 VAC or 30 VDC, 6 amp loads. They are built in the same form factor as standard SNAP I/O modules. They offer three times the rated current switching capability of standard SNAP optically isolated outputs, and twelve times the rated current switching capability of SNAP reed relay modules in the same amount of rack space.
Opto22
800/321- 6786
www.opto22.com

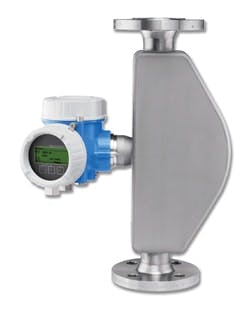

HART-ENABLED CORIOLIS FLOWMETER
The Promass E 200 Coriolis flowmeter is the world’s first Coriolis flowmeter with true two-wire 4-20mA HART technology. It is the only two-wire Coriolis meter with a full 16mA of measurement span without the need for excess adapters, power supplies or barriers. Its two-wire technology enables it to be used in intrinsically safe applications for Class 1 Division 1 locations It has been submitted for a SIL-2 rating for critical applications, and it complies with NE43 (NAMUR) safety standards.
Endress+Hauser
888-ENDRESS
www.us.endress.com
