Level Field

Dec. 11, 2014
Devices to Help Determine the Amount of Material in a Tank, Hopper or Vessel.

VIBRATION LIMIT SWITCH
LVL-B Series vibration limit switches sense levels of bulk solids. They have no mechanical moving parts. The switches are FM- and CSA-certified as dust ignition proof (DIP) for Class II and Class III, Divisions 1 and 2, Groups E-G. They feature a 250 mm (10 in.) vibrating rod, and are available with 500 mm (20 in.), 1,000 mm (40 in.) and 1,500 mm (60 in.) extension pipes.
Pepperl+Fuchs
330-486-

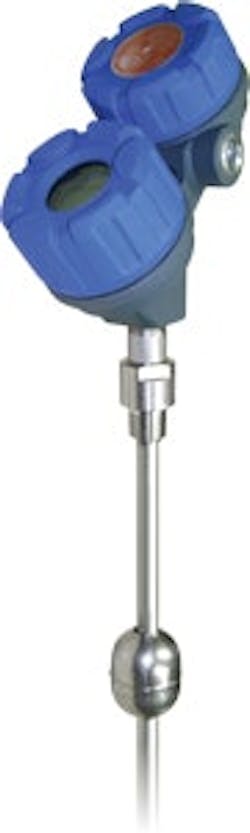

JUST ADD 4-20 MA
Jupiter magnetostrictive transmitter provides a 4-20 mA output, and is easily attached to the company's magnetic level indicators or directly inserted into vessels. The dual compartment enclosure separates wiring and electronics to facilitate installation and set-up. Features include an LCD and pushbutton operation. Options include HART, alloy construction and threaded or flanged fittings.
Orion Instruments
225-906-2343

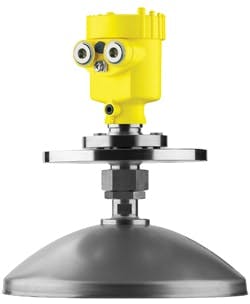

SEES SOLIDS WITH SUPER SENSITIVITY
VegaPuls 68 has high sensitivity to detect and evaluate echoes in low dielectric conditions at long ranges. The loop-powered transmitter is available with a swivel antenna for mounting to match the angle of repose created by fill or empty conditions. Unaffected by dust or pneumatic filling, it offers ±2 mm accuracy at -40-482°F and -14.5-2,320 psi.
Vega Americas
800-367-5383

READS LEVEL BY RADAR
Type 8136 non-contact radar level measuring device is for continuous level measurement. One version has an encapsulated horn antenna suitable for measuring levels of aggressive liquids in small vessels. Another option has a plastic horn antenna for measuring open flumes or performing gauge measurement in waters. Users can adjust the device via the display, key operation or a PC-based tool.
Burkert Fluid Control Systems
949-223-3100

LEVEL SWITCH ALSO DOES FLOW OR TEMPERATURE
FLT93 Series FlexSwitch brochure showcases an innovative thermal dispersion flow and level switch, along with complete product and application information. The switches are dual-function instruments that can be configured for flow or level sensing, flow and temperature sensing, or level and temperature sensing. Also, these switches are SIL2-rated.
Fluid Components International
800-854-1993

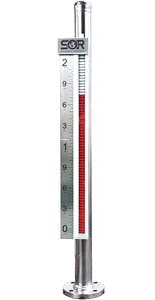

CUSTOM MAGNETIC LEVEL INDICATORS
1100 Series magnetic level indicator pairs the company's chamber design with an indicator that gives users access to their process information. Each 1100 Series MLI is custom engineered and manufactured for a user's particular application. SOR level gauges existing process sight gauge systems, and can be a functional bridle system for use with other instrumentation.
SOR Inc.
913-888-2630

GUIDED WAVE NOW ON FOUNDATION FIELDBUS
Eclipse Model 706 with Foundation fieldbus passes the Fieldbus Foundation's testing using the latest interoperability test kit (ITK) 6.1.1. Along with the HART version's improved signal-to-noise ratio, improved diagnostics and overfill-capable probes, it has input selector as well as resource, transducer, analog, PID, signal characterizer and integrator blocks.
Magnetrol
800-624-8765

ULTRASONIC LEVEL TRANSMITTER
LVCN210 series ultrasonic level transmitter and controller provides continuous level measurement up to 3 m (9.8 ft) with a 4-20 mA signal output, and is configured via the company's freely downloadble software. The CE-compliant transmitter features four programmable relays, PVDF transducer, 6P polycarbonate enclosure and automatic temperature compensation for accurate measurement.
Omega
888-826-6342

SUBMERSIBLE LEVEL TRANSMITTERS
ProSense SLT series submersible level sensors/transmitters continually sense hydrostatic pressure produced by the height of liquid above the sensor. They supply a 4-20 mA output signal. SLT1s features a 1-in. diameter housing and a ported bullet nose cap. SLT2s feature a 2.75-in. diameter PTFE flexible diaphragm surrounded by a 316 stainless steel, non-fouling, protective cage.
AutomationDirect
800-633-0405

WHAT'S THE WEIGHT?
HI 6600 series of EtherNet/IP-enabled modular industrial weight processing systems with a Rockwell EDS_AOP lets users configure between one and 30 channels of stable, processed weight over a single fieldbus connection. HI 6600 delivers processed weight with a resolution of 1:10:000 and an update speed of 110 updates per second for up to 30 synchronized channels.
Hardy Process Solutions
858-278-2900

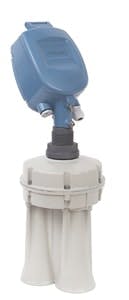

SOLIDS SCANNERS
Rosemount 5708 Series 3D solids scanners continually measure level, volume and mass of bulk solids and powders in large vessels, bins and silos. The devices use acoustic measurement and 3D mapping technologies to provide accurate and reliable results. They can measure almost any kind of material including fly ash and materials with low dielectric constants.
Emerson Process Management
949-757-8500

GET LEVEL VIA MODBUS

MNU Series ultrasonic sensors are self-contained sensors that measure distance, level or volume, with a standard Modbus RTU protocol (RS-485) output. Units come in sensing ranges from 4 in. to 40 ft., and feature an accuracy of ±0.25% of detected range and resolutions of 0.1 in. (2.5 mm). MNU level sensor users can also access their data remotely.
Automation Products Group Inc.
888-525-7300

RADAR READING

DR6300 Series non-contact level meter provides distance, level, volume and mass measurements of powders, granulates and other solids. Its frequency modulated continuous wave (FMCW) radar reportedly gives a more stable measurement than pulse radar. An easy-to-navigate display features a choice of touchscreens, such as tank illustration, bar graph, oscilloscope, signal and reflectivity.
Ametek Drexelbrook
215-293-4190

MEASURES GRANULAR VOLUMES

VM3D volumetric laser scanner measures volumes of bulk granular material stockpiles stored in the open or in large silos, bunkers, domes and sheds. The unit uses a narrow-beam laser and mechanical scanning technology that results in a tight cloud of data points for developing a surface map and calculating volume. Dust tubes keep lenses clear and heated optics prevent condensation.
ABB
800-829-6001

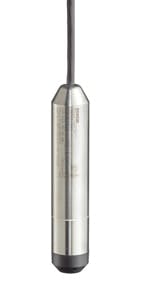

SUBMERSIBLE PRESSURE TRANSMITTER

Sitrans LH100 submersible level transducer measures the liquid levels in tanks, containers, channels and dams. The device provides 0.3% accuracy, is available for various measuring ranges and comes with an intrinsic safety option. The ceramic sensor has a 0.92 in. diameter for mounting in pipes that have a 1.0 in. inside diameter. The housing is made of 316L stainless steel.
Siemens Industry
800-743-6367

WORKS WITH AGGRESSIVE LIQUIDS

King-Gage D/P purge control is a rugged, integrated air control and transmitter package that purges a length of pipe extending downward into the tank, providing continuous level measurement and repeatability within ±0.2%, while preventing turbulence or foaming of tank liquid. Changes in hydrostatic head pressure provide 4-20 mA output directly proportional to depth.
King Engineering
800-242-8871

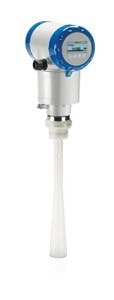

MEASURES LEVEL VIA RADAR

Optiwave 5200 C/F is a 10- GHz FMCW radar level meter for liquid applications with up to a 30 m (98 foot) measuring range. The two-wire, loop-powered device measures level and volume in storage or process tanks with process conditions up to 250° C (482° F) and pressures up to 40 bar (580 psi.) for general purpose or hazardous locations (Class I, Division 1).
Krohne Inc.
800-356-9464

TWO FOR ONE

Deltabar FMD71 level transmitter uses two pressure sensor modules, each connected electronically to one transmitter. The transmitter calculates the differential pressure from both sensors and transmits the level, volume, or mass via 4-20 mA with HART as a standard two-wire loop-powered device. The electronics eliminate the clogging and leaking associated with traditional DP measurement.
Endress+Hauser
888-363-7377
