Single chamber sight glass with GWR

Nov. 1, 2021

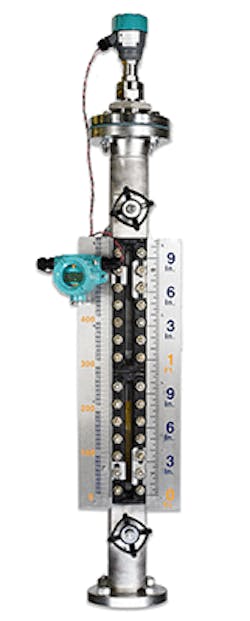

Hawk Measurement (HAWK), a manufacturer of measurement solutions, and Bliss Americas, a level and skids manufacturer, teamed up to bring to the industry a single chamber measuring device: the Acurage. The Acurage is an auto calibrating radar gauge for true level reading and instant spot smart calibration. The ASME-approved level measuring instrument displays the level of process fluids in real-time via digital display and built-in sight glass tube. The Acurage features a built-in safety ball check system to protect the operator from accidental spillage of process liquid in the unlikely event of glass breakage.

This level measuring instrument combines a built-in sight glass with guided wave radar technology and a digital display. It is designed to solve difficult applications such as steam applications and is approved by ASME spec for steam boilers and generators. The integral isolating ball check valves not only make this the sight glass safe to use, but it also provides instant glass field replacement without complicated isolating procedures from the process fluid. The true redundancy of the Acurage provides full functionality even in a power failure mode, which is inevitable in critical level monitoring applications. The Acurage is a fit for a wide range of chemical and petrochemical applications such as boiler rooms, condensation tanks, storage tanks and surge tanks.
