ControlAir Type 7000 air pressure regulators

July 10, 2019

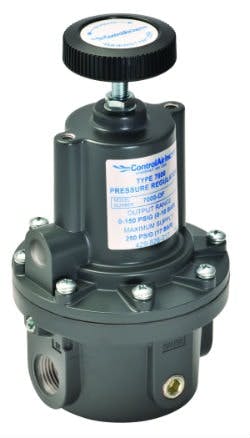

Type 7000 high-capacity, precision air pressure regulators are designed to provide the highest level of regulation accuracy and repeatability during variable high-flow conditions. Available in 1/4- to 3/4-in. NPT port sizes and 0-2 psig to 0-200 psig outputs, they hold output pressures within 1/2-in. WC. Their maximum supply pressure is 250 psig, temperature range is -40 to 200 °F, and clow capacities are up to 250 scfm. The effect supply variation is less than 0.3 psig for 100 psig change, and high exhaust capacity allows relief flow up to 30 scfm.
