Rosemount/Emerson's Conditioning Orifice Plates

March 1, 2004
Conditioning orifice plates smooth flow
Conditioning Orifice Plates

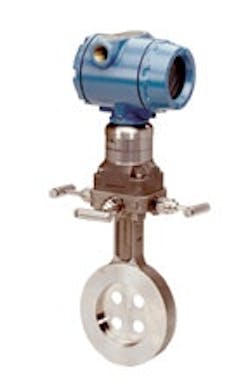

Models 405 and 1595 conditioning orifice plates provide 0.5% accuracy with only two diameters of straight pipe-run, significantly reducing material, labor and procurement costs. The plates have four, equally spaced holes that condition the flow profile for a more stable, accurate measurement. Both models deliver accurate and repeatable results downstream of a variety of flow disturbances that normally cause swirl in the flow process.Rosemount/Emerson:
