Loop-powered, dual-temperature with HART

Jan. 30, 2023

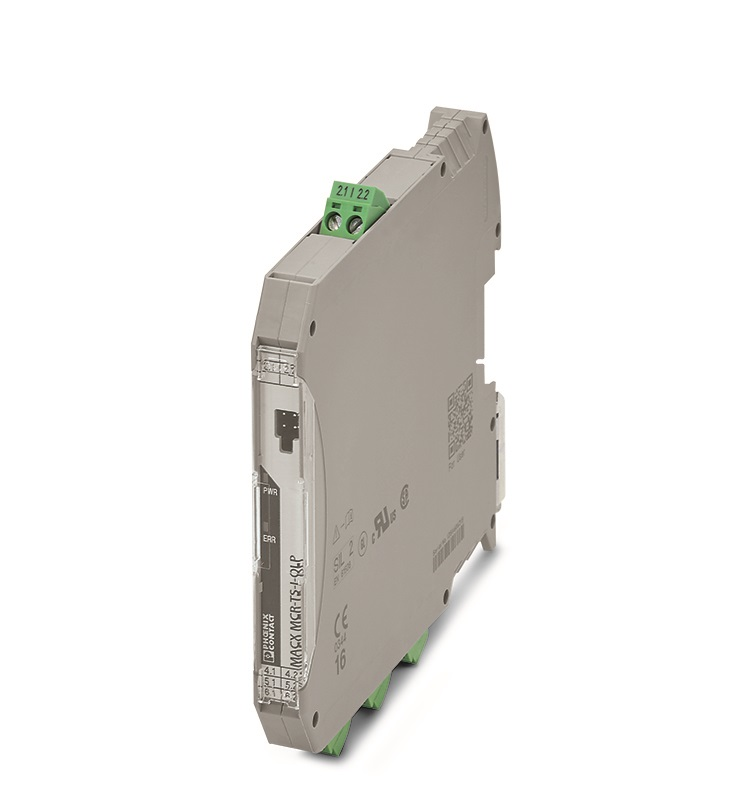

MACX MCR-TS-I-OLP loop-powered, dual-sensor temperature transmitter supports more than 28 different temperature sensors. It will also accept -20 mV to 100 mV, and linear resistance ranges from 10 ohms to 2K ohms. On the output side, it features a dedicated 4-20 mA signal with HART communications. At only 12.5 mm wide on the DIN rail, MACX MCR-TS-I-OLP is thin in size, but the operating temperature range of -40 °C to 85 °C makes it widely usable. Both the EX and non-EX versions can be ordered preconfigured with certificates of calibration.

In addition, MACX MCR-TS-I-OLP offers high accuracy when transmitting measured values and control signals that are electrically isolated. Due to its SIL calculations, according to EN 61508-1, these modules can be easily designed into safety-related industrial automation applications. Approvals for worldwide use include ATEX, CSA, FM, EAC, and UL Class I, Div. 2.

Phoenix Contact

800-322-3225; www.phoenixcontact.com/macx
