The Ultimate HMI

Aug. 15, 2011
What Your Operators Need to Know and the Best Way to Show It to Them
Nancy Bartels is Control's managing editor. You can her at [email protected] or check out her Google+ profile.

"An effective HMI gives the operator better situational awareness. Your plant is successful only if your operators are successful. [An effective HMI] helps operators deal more effectively with abnormal situations. It helps them do proper operating techniques. Poor HMIs impede that." So says Bill Hollifield, principal alarm management and HMI consultant at PAS and co-author of The High Performance HMI Handbook

So how do your control-room HMIs measure up? Do they provide that essential situational awareness and operator support? What follows are some basic rules for designing a good, modern HMI.

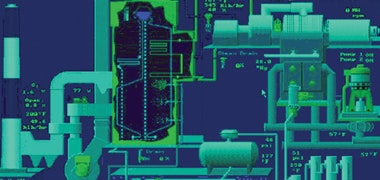

Your HMI Should NOT Look Like This!

Figure 1. A tricked-out PID drawing with flashy designs, animation, shadows, bright colors, 3D renderings and inconsistent color coding are confusing and doesn't tell your operators what they need to know.

A Good HMI Should Look Like This
Figure 2. A good HMI doesn't have a lot of unnecessary glitz or confusing data. It does have a gray background and limited use of color, low-contrast, 2D depictions of processes, trend charts and at-a-glance indications of overall process conditions.

Getting Trendy

According to Hollifield, one of the most glaring deficiencies in HMI design is the lack of trending information. He says that almost every graphic has one or two values on it that would be much easier to understand if they were presented as trends. He adds that ideally, trends should be embedded in the graphics, and appear whenever the graphic is called up.

Analog Is Better

Figure 3. Analog depictions are very powerful because humans are hard-wired to understand pattern recognition.

Pictures and Words

Figure 4. Relative brightness plus a WORD is the best presentation. Things brighter than the background are on; things darker than the background are off.

Alarming Situations
Figure 5. Alarms should be depicted redundantly based on priority.
They should be consistently coded by color, shape and text.
Alarm colors should never be used for anything else in the HMI.
The Importance of Trends
Figure 6. Trends should show both normal and abnormal ranges
and answer the question: "Where am I as compared with
where I should be?"

[Editor's note: This article depends heavily on material found in presentations by Bill Hollifield and Paul Gruhn. Thanks to both of them for their help in its preparation.]

Extra-Credit Reading

We've only scratched the surface here. More much more detailed information on high-performance HMI is avaialble. Check the following:

Two Things Your HMI Should Have

A Level Playing Field

Color Code

Developing a Good HMI

A Seven-Step Process

HMI Extra-Credit Reading

Proper HMI Graphics Should Look BORING!
