Krohne Waterflux 3000 meter sensor

Aug. 8, 2019

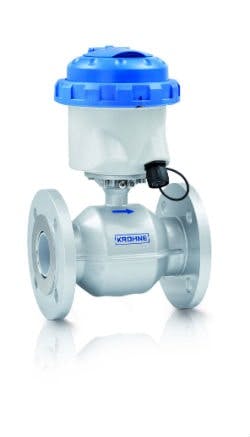

The WATERFLUX 3000 water meter is the newest sensor design in Krohne's family of magmeters. The sensor is available in sizes ranging from 1 to 24 inch. When combined with the IFC 070 battery-powered converter electronics, the resulting WATERFLUX 3070 is the first all-in-one water meter with available integrated pressure and temperature sensor. The new integrated pressure and temperature sensor option allows WATERFLUX to be used for a wide variety of drinking water network tasks, including pressure monitoring, maintaining the water balance and district zone management. It can also be used for leak detection in drinking water networks when comparison of pressure and flow values is used as the leak detection method. The meter’s unique sensor design can be installed without the need for any upstream or downstream piping to meet its accuracy specifications. For locations where 110…230V AC or 10…30V DC power source is available, WATERFLUX 3000 can also be combined with other converters such as the IFC-050, -100 or -300 series.
