Smart TFT display module with SoC

Jan. 30, 2023

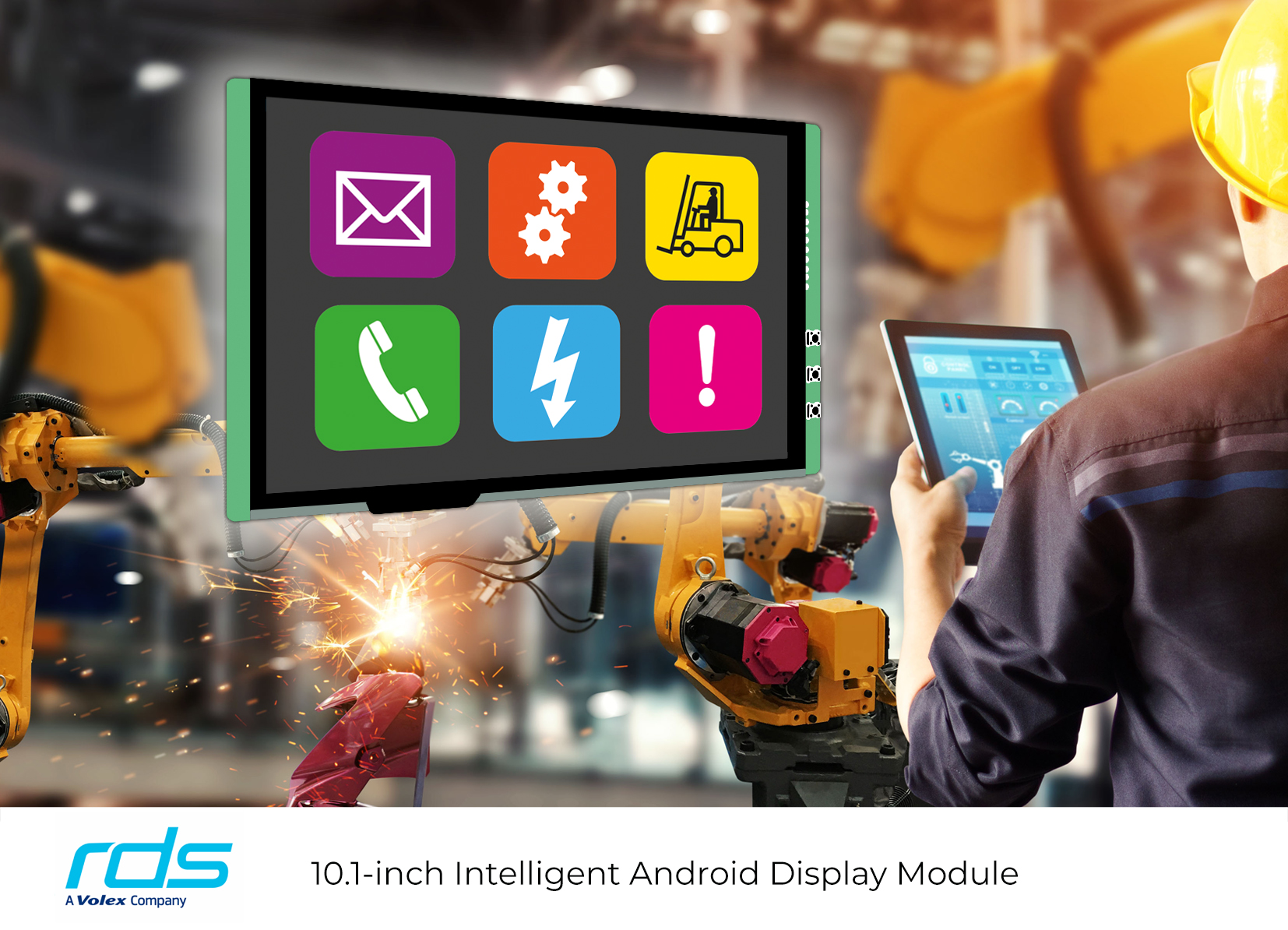

DMG10600T101-33WTC fully integrated, intelligent display module uses a Rockchip RK3288 ARM-based, system-on-chip (SoC), featuring a 32-bit Cortex A-17 core running an Android operating system. It also supports Android and Linux operating systems, and features a 10.1-inch IPS TFT LCD with WSVGA resolution (1,024 x 600 pixels) and a brightness specification of 310cd/m². The display’s 24-bit RGB data supports a color palette of up to 16.7 million colors, while its projected capacitive (PCap) touchscreen enables ease of use.

Other onboard functions include Wi-Fi IEEE 802.11Bb/g/n 2.4 Ghz, Bluetooth connectivity, HDMI interface, MIPI/USB camera interface, microphone interface, 3.5mm headphone socket, and a dual left/right speaker interface. A Linux-based operating system version is also available.

DMG10600T101-33WTC’s integrated interface and peripheral connections include two RS232 serial ports, one RS485 serial port to connect and communicate with external devices, Ethernet 10/100Mbps interface, three USB interfaces, SIM card slot and 4G module slot. Onboard memory includes 8GB of flash memory and 2 GB DDR3 RAM with a SD card expansion slot supporting up to 64 GBytes (maximum).

By supporting the Android 8.1 operating system, DMG10600T101-33WTC can download additional Android apps and APK files to enhance functionality and configure it for application-specific tasks. This enables it to be configured and customized for specialized user requirements.

Review Display Systems Inc.
