Meet the Latest Product Introductions from This Month
SMALL FORM-FACTOR SOLID-STATE RELAYS The new Termopto solid-state family of relays offers electrical isolation in the size of a terminal block. They function as both a terminal block for signal connection and a relay to separate signals, all in one compact module for space savings in the control cabinet. Sixty versions include standard input voltages from 5-230 VAC and DC, with three optional output voltages of 5–48 VDC and 0.1mA, 5 – 48 VDC and 0.5mA, or 24 – 230 VAC with 0.1mA. Weidmuller 800/849-9343 www.weidmuller.com
SMART, RUGGED POSITIONER Sitrans VP300 incorporates the 2007 Nobel Prize-winning GMR effect. This “giant magnetoresistance” technology is used for non-contact position sensing of a linear or rotary valve shaft. This eliminates any mechanical wear or complex interaction of couplings and levers between these components. Sitrans VP300 requires only one magnet for strokes up to 150 mm (5.9 in.) or rotary angles up to 120º. It also features SIL-certified, partial-stroke testing (PST). Siemens Industry 800/964-4114 www.usa.siemens.com/Industry

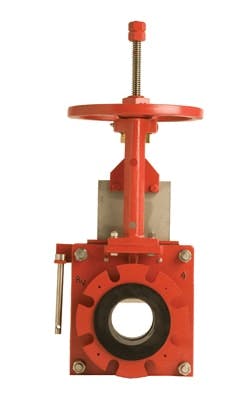

HEAVY-DUTY SLURRY KNIFE GATE VALVE Series DX Slurry Knife gate valve is designed especially for heavy slurry applications in the power and mining industries. When it opens, reinforced elastomer sleeves seal against each other and provide a 100% full-port opening, minimizing turbulence, which in turn minimizes wear. The seats isolate and protect all metal parts from coming in contact with the process. When the valve is closed, the sleeves provide a drop-tight seal. It also provides drop-tight shut-off in both directions. Red Valve Co. 412/79-0044 www.redvalve.com

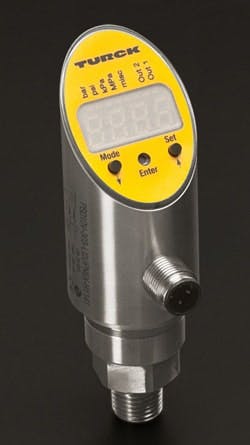

RUGGED PRESSURE SENSORS PS300 series pressure sensors for hydraulic applications feature a rugged, IP69K-rated design to withstand harsh environments. They measure 3 bar to 400 bar. Signals are processed on the PS300’s new pressure measuring cell, and then digitally transferred to the sensor’s fully potted, self-contained display. Switch point accuracy is 0.5% of the full scale. They’re available in male or female 1/4 in. NPT or G 1/4 in. thread versions, with digital or analog outputs. Turck 800/544-7769 www.turck.us
LOW-MAINTENANCE, HIGH-ACCURACY pH/ORP SENSORS The new S651CD submersible electrode and S656CD insertion electrode combine superior performance with lower maintenance requirements and longer life. S651CD is an upgrade to the original S650CD. It can replace the S650CD and S650CDHT, and is designed for measurements in tanks, flumes and sewer lines. The S656CD is an upgrade to the S656CD electrode, and can be used in place of the S655CD, S655CDHT and 970283 models. Sensorex 714/895-4344 www.sensorex.com
REALLY COOL 60W POWER SUPPLIES These 60W power supplies offer either a standard operating temperature range or one with an extended low range down to -40°C. They have universal, wide-range input, up to 89.7% efficiency, no-load losses less than 0.45W and large screw terminals that accept up to 10 AWG wire. They are NEC Class 2-approved. The standard version has a temperature range of -10 °C to +60 °C. Both ranges come in a 12-15 VDC or 24-28 VDC adjustable output voltages. Puls Power Supplies 630/587-9780 www.pulspower.us
HAZARDOUS-DUTY FLAT-PANEL MONITORS VisuNet IND Series industrial flat-panel LCD monitors are Zone 2-certified for use in hazardous environments. They are fully configurable for use in extreme environments and/or continuous duty operation. They’re available in 12-in., 15-in. and 19-in.sizes, come in a variety of mounting styles, and are LED-backlit for long lasting and energy efficient brightness. They accept standard VGA or NTSC inputs from a PC or video camera source. Pepperl+Fuchs 330/486-0002 www.pepperl-fuchs.us
INTRINSICALLY SAFE WEIGHING TERMINAL The IND560x intrinsically safe weighing terminal is suited for process control in hazardous areas. Approved for FM Division 1 and ATEX Zone 1 and 21 classified areas, it provides control and connectivity for weighing processes in explosive atmospheres. IND560x is a full-featured process control weighing instrument. Accompanying software includes weight monitoring, setpoint control, filling, blending and more. The IND560x platform can also be programmed to support completely custom applications. Mettler Toledo 800/786 0038 www.mt.com/industrial

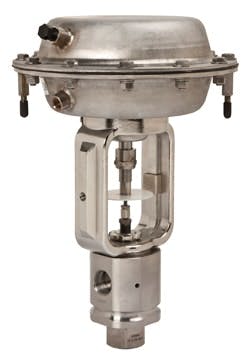

ULTRA HIGH-PRESSURE CONTROL VALVE The HP-60 control valve is engineered for use in high- pressure chemical applications, including research, injection and pilot plants. HP-60 is a 60,000-PSI, low-flow control valve able to withstand intense pressure, and provides a moderate level of corrosion resistance. The versatility of the HP-60 creates a singular solution for high-pressure applications; it can be used for both flow control and as a Class IV shutoff valve. Badger Meter 800/876-3837 www.badgermeter.com

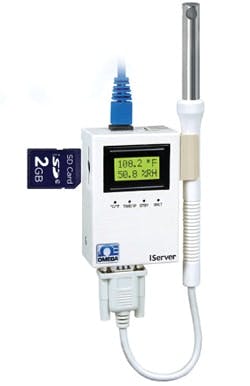

VIRTUAL CHART RECORDER The Omega iTHX-SD transmitter lets users monitor and record temperature, relative humidity and dew point over an Ethernet network or the Internet with no special software except a web browser. It serves Active Web Pages to display real-time readings, display charts of temperature and humidity, or log data in standard data formats for use in a spreadsheet or data acquisition program, such as Excel or Visual Basic. Omega 888/826-6342 http://omega.com
REGULATORS WITH OVERPRESSURE PROTECTION The Fisher CS800 Series direct-operated, spring-loaded regulators with overpressure protection options is ideal for industrial applications needing accurate control, fast speed of response and easy maintenance. It is available with flanged or threaded end connections, outlet pressure settings from 3.5 in. w.c. to 7.5 psig (9 to 515 mbar), orifice sizes from 1/4-in. (6.4mm) to 1 3/8-in. (35mm), and the option for internal or external pressure registration. Fisher Regulators 800/558 5853 www.fisherregulators.com

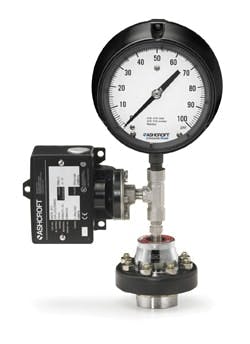

ISOLATED PRESSURE INSTRUMENTS Ashcroft pressure instruments are configurable with media isolators specifically engineered for harsh or corrosive process liquids and gases. Ashcroft seals are available in a variety of sizes, wetted materials and configurations, including capsule type, welded or bonded and clamped designs with threaded, flanged and flushing connections. They come pre-assembled, filled and ready for installation in severe-service applications. Ashcroft 800/328-8258 www.ashcroft.com
