Jan. 8, 2014
The Latest Hardware Applications and Software to Get Your Information Under Control
CERTIFIED COMPUTERS AND I/O CALIBRATION
UNO-4683 is a fanless substation computer that’s IEC 61850-3 and IEEE 1613 certified. It comes with an Intel Core i7 processor, compact 2U, rack-mount form factor, dual power input and advanced computing. It has six Ethernet ports, six USB ports and two RS-232/422/485 isolated serial ports. The UNOP-1624D I/O module is a four-port isolated RS-232/422/485 card with IRIG B support.
Advantech
888-576-9668
www.advantech.com/ea

REDUNDANT SD CARDS
The 750-885 media redundancy controller provides network redundancy and greater data processing. The Ethernet 2.0 750-885 PLC features two redundant networks backed by dual, independent Ethernet interfaces and 1MB of data memory. SD Card provides up to 32GB of extra memory for back-up-and-restore, file transfer and time-stamping/data-logging.
Wago
800-DIN-RAIL
www.wago.us

START A TREND
Trendview data recorders with advanced analysis software come in three models with screen types that display various combinations of horizontal and vertical charts, digital values and bar graphs. Trendview helps in graphing continuous and batch data, analyzing and archiving data, configuring paperless recorders, setting up scheduled uploads of recorder data or acquiring data in real time.
Honeywell Process Solutions
www.honeywellprocess.com
SMART DAQ
GX and GP data acquisition station models have a new touchscreen operator interface and fully modular and scalable I/O. GX is a NEMA-4-rated, panel-mount system, and GP is a portable bench-top. Both share the same performance specifications and high-capacity SD flash memory data storage. Enter information via on-screen keyboard, an external USB keyboard or with a pen stylus.
Yokogawa Corp. of America
www.yokogawa.com/us

DAQ AND CONTROL
MAQ20 data acquisition and control system features two software options: IPEmotion for test and measurement, and ReDAQ Shape for easy, effective data acquisition, monitoring and control. It also has integral PID control, a built-in Modbus server for standalone operation and a built-in FTP server. Typical applications are flow, tank level, heat-exchanger/reactor temperature and pressure control.
Dataforth
800-444-7644
www.dataforth.com

NO PROGRAMMING REQUIRED
MX-Series multiplexers can transmit up to 16 channels of bidirectional electrical data over a pair of fiber-optic cables. They feature I/O module selections, including 4-20mA, 0-10 VDC, contact closure and RS-232/485. The I/O modules are available in two- and four-channel versions, and mount on a 35-mm DIN rail. No programming is required, and installation doesn’t require an engineer.
Ultra Electronics
512-434-2800
www.ultra-nspi.com
WIRELESS DATA LOGGER

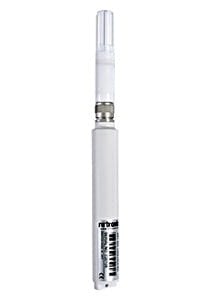

Log-HC2-RC data logger is the most advanced and precise humidity and temperature data logger of its kind. The versatile Log-HC2-RC works with any Rotronic digital HygroClip 2 probe with Airchip 3000 technology. It can transmit from distances of up to 100 meters back to a computer running Rotronic HW4 software. It also meets all requirements for CFR 21 part 11 compliance.
Rotronic
631-426-3898
www.rotronic.usa.com

EXTREME RIG MONITORING
VisuNet XT operator workstation HMI features a high-bright, LED-backlit, LCD panel display with an optically bonded, glove-friendly and sunlight-readable, 15-in. (38.1-cm) or 19-in. (48.3-cm) touchscreen. This Type 4/4x operator workstation can help maximize productivity in harsh oil exploration and extraction applications in temperatures from -40 °C to + 65 °C.
Pepperl+Fuchs
330-486-0002
www.pepperl-fuchs.us

MODBUS RTU I/O WITH DATA LOGGING
The microNCS Modbus RTU master and distributed I/O system can be used to send just a few or hundreds of process signals between the field or factory floor and a control system. The standalone microNCS functions as an economical Modbus RTU master. It features simple programming and a data logger with a back-up battery that can archive up to 64,000 time and date stamped values.
Moore Industries-International
818-894-7111
www.miinet.com
SPLASH-PROOF DATA LOGGER

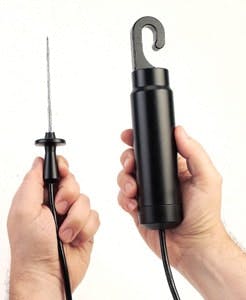

OM-CP-RFOT splash-proof, wireless, temperature data loggers are designed for the meat processing industry. Their rugged design allows them to be used in the harshest environments, so they’re ideal for smokehouses, ovens and other cooking processes. They’re also CE-compliant, feature real-time operation, two-year battery life, long-term field deployment, and are HACCP- and USDA-compliant.
Omega
888-826-6342
www.omega.com

DO YOU KNOW WHERE YOUR ENERGY IS?

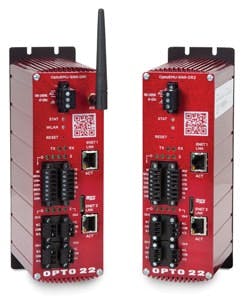

OptoEMU Sensor DR is a compact unit for monitoring energy use. Connected to utility meters, plant equipment and facility systems, it gathers real-time energy consumption and demand data ,and delivers it to enterprise business and control systems and web-based applications for monitoring and analysis, helping businesses take advantage of lucrative demand-response (DR) programs.
Opto22
951/695-3000
www.opto22.com

HIGH-PERFORMANCE, COMPACT DAQ
The CompactDAQ platform with standalone data acquisition systems is compatible with more than 50 sensor-specific I/O modules for flexible, mixed-measurement data logging. It includes a built-in, dual-core Intel processor and onboard storage to deliver high-performance processing in one portable system. Using NI LabView software, engineers can customize a data-logging or embedded-monitoring solution.
National Instruments
800/258-7022
www.ni.com
COMMUNICATIONS GATEWAYS
PLX30 gateways can support multiple I/O connections to EtherNet/IP-enabled PACs, providing real-time transfer of up to 4000 words of data between devices, such as HMIs and SCADA systems, power monitors and flow computers. All Modbus serial ports are individually configurable for master or slave, RS232, RS422 or RS485, and provide a flexible host or device interface solution.
ProSoft
661/716-5287
www.prosoft-technology.com

MULTICHANNEL TRANSMITTER WITH ETHEnET/IP
The Liquiline CM44x multichannel transmitter with EtherNet/IP connectivity can easily and seamlessly be integrated with Rockwell Automation PlantPAx Process Automation System. The transmitter is a digital multiparameter controller for process monitoring and controlling in the water, wastewater, chemical, and power industries. It features an integrated web server that allows the operator to remotely view diagnostic data, perform configuration, or access device parameters via any web browser. Data can be securely accessed and maintenance functions can be performed via Endress+Hauser's FieldCare asset management system.
Endress+Hauser
www.us.endress.com/liquiline

TWICE THE USB DAQ
USB-1608FS-Plus is a high-speed, multifunction USB DAQ device with sampling rates up to 400 kS/sec and 800 kS/sec in burst mode. This new module offers twice the throughput of Measurement Computing’s present USB-1608FS at the same price. It provides eight, 16-bit, simultaneously sampled analog inputs, eight digital I/O (high-current 24 mA), and one counter input.
Measurement Computing
508-946-5100
www.mccdaq.com
USB DATA LOGGER FOR FLOWMETERS
USB data logger maintains a history of an Exair digital flowmeter’s measurements for analysis. Use the included software to configure the data logger to record your flow rate. Record from once a second up to once every 12 hours. Data can be viewed in the included software or exported directly into Microsoft Excel. USB data logger is available pre-installed on the digital flowmeter.
Exair
800-903-9247
www.exair.com/data.htm
