Spartan Scientific's Series APV-10 remote air pilot valves

Dec. 21, 2007
2-way, 2-position valves control air, fluid, fluid emulsions and water

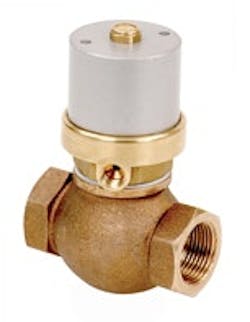

Series APV-10 2-way, 2-position, air piloted valve can be controlled by either a 3-way, 4-way solenoid valve or a hand pilot valve. Its media separated, reciprocating piston operator controls, air, fluids, fluid emulsions, water or any other media that is compatible with the valve body materials. With standard sealing materials including Buna, Viton, or PTFE, the valve is suitable for any application involving media control of solvents, water, water with suspended particles and coolants. The valve is offered in NO or NC versions as well as double-acting versions. The bronze body is available in ½ in. to 2 in. NPT port sizes and depending on the version of the valve, can handle operating pressures from 0 to 235 psi. Temperature range is -20 deg C to 80 deg C; flow range, 4.7 to 60.5 Cv. Spartan Scientific; 330/758-8466;
