ProCalV5 software for calibration and maintenance-asset management helps users manage the calibration of metrology, process and analytical instruments. The software is 21 CFR/Part 11-compliant. Off-line users have access to the full program interface on a local mobile workstation for paperless calibration. ProCalV5 also communicates with documenting process calibrators.
The 721 dual-range, pressure calibrator with dual isolated pressure sensors can take simultaneous static and differential pressure measurements in a single tool for gas custody and transfer applications. It can be configured by selecting either a 16-psi or 36-psi low-pressure sensor, and then adding any of seven high-pressure ranges, including 100, 300, 500, 1,000, 1,500, 3,000 or 5,000 psi.
M200LS lab-standard, smart, digital manometer provides a NIST-traceable accuracy of ±0.01% of full scale from 15 °C to 30 °C and ±0.025% of full scale from -20 °C to 15 °C and 30 °C to 50 °C. Pressure ranges from 28 in. H2O full scale to 500 psig full scale are available. M2 pressure sensors are available to measure gauge, differential, absolute or vacuum pressure.
Meriam Process Technologies
Beamex’s ICS integrated calibration solution can combine calibration equipment, such as pressure, temperature and multifunction calibrators, automatic temperature blocks and automatic pressure regulators; the company’s CMX calibration management software; and documentation such as user guides or project plans. The ICS solution integrates with ERP and CMMS systems.
With the LC-110H HART loop calibrator technicians can adjust and configure most of the HART functions of smart transmitters in the field. The handheld can perform a full auto-calibration including PV Zero and PV Span for most HART pressure transmitters. The device features a best-in-class accuracy of ±0.01% of reading for dc current and voltage.

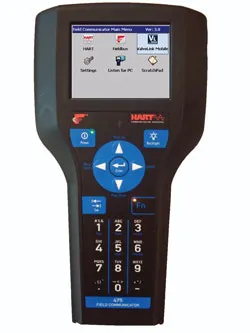

ValveLink Mobile version 4.0 software comes pre-installed on intrinsically safe 475 Field Communicators, so operators can configure, calibrate, validate, diagnose and troubleshoot control valves on a Foundation fieldbus network in the field. It has an intuitive interface with touchscreen icons. Troubleshooting guides in the software help boost plant uptime.
Emerson Process Management
