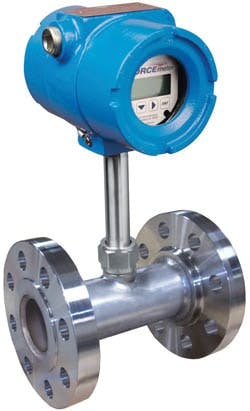

ForceMeter flowmeters now include a three-wire option. ForceMeter uses proven strain-gage technology to sense the force of the fluid in the flow stream. The new three-wire meter provides turndown up to 20:1, allowing for lower flow rates to be measured, increasing its application flexibility. The three-wire model is also HART-compliant and FM-approved for hazardous locations.

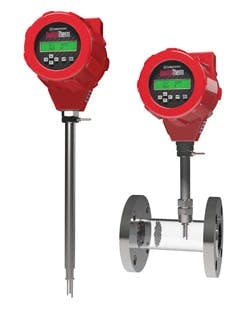

QuadraTherm 640i and 780i flowmeters are equipped with a Foundation fieldbus interface. Sierra Instruments’ digital communications solutions include HART, Profibus DP, Modbus RTU, Foundation fieldbus and BACnet, making it as easy as possible for end users to find the information they need to integrate their flow instruments into their digital communications network.

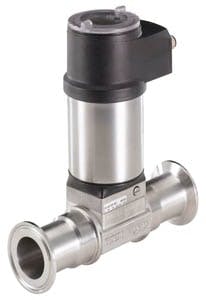

Element Type 8036 flow transmitter is a compact device designed to measure flow rate in solid-free liquids. It has a sensor with paddle-wheel and an enclosure with cover, containing the electronic module and a removable display. Available for orifice sizes ¼ in. to 2 ½ in., it has a temperature range of 5 to 212 °F, 232 psi maximum pressure and a 0.5% full-scale accuracy rating.
The iQpump1000 offers ease of setup and comprehensive pump and motor protection features. Integrated, pump-specific software and setup parameters let operators program control values for many applications. The iQpump1000 drive automatically adjusts pump operating conditions as process variables change, while still maintaining optimum pump performance and protection.
These ultrasonic flowmeters come in portable and fixed-installation models. Both display instantaneous fluid flow rates or velocity and totalized values, and install quickly without interrupting the process stream. They both provide a sampling resolution of 50 pico-secs, a bi-directional velocity range of 0.33 ft/s with maximum velocity of 65 ft/s and repeatability of ±0.5% of measured value.
FCB330 and FCB350 compact Coriolis flowmeters are designed for flow measurement applications in multiple industries. They have an optimized sensor with superior zero point and temperature stability. They support pipe sizes from DN15 to DN150 (0.5 in. to 6 in.) and are available with an integrally mounted transmitter and wiring and a remote-mount design.

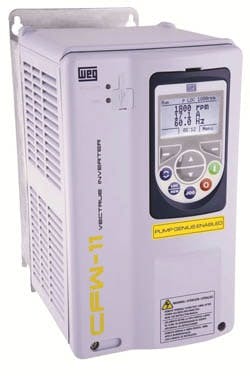

Pump Genius software for Weg’s CFW-11 variable-speed drives can monitor and manage up to six pumps in a coordinated system. It can operate motors from 5 hp to 150 hp in the 208 and 230/240 Vac range and from 5 hp up to 600 hp in the 480 Vac range. Its software provides control and protection, management of cycle hours, and master and slave designation.
Weg Electric Motors Corp.

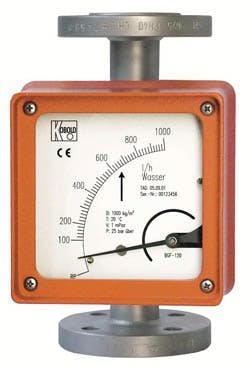

BGN armored, variable-area flowmeter has an all-metal design and is available in stainless steel, PTFE-clad stainless steel or Hastelloy-C22—ideal for difficult applications requiring high- pressure, high-temperature operation or low pressure loss. It’s suited for water, most viscous liquids and compressed gases in line sizes up to 6 in. An analog output is standard for HART-based signals.
ST100 Series air/gas flowmeters deliver process air/gas flow measurement over Foundation fieldbus. They measure flow rate, totalized flow, temperature and, optionally, pressure for any air/gas application. Flow ranges from 0.25 SFPS (0.07 NMPS) to 1,000 SFPS (305 NMPS) are available with accuracy of ±0.75 percent of reading, ±0.5 percent of full scale.
Fluid Components International
FPI-X dual-sensor, electromagnetic flowmeter achieves ±0.5% accuracy under the most severe swirling flows. It features a dual-sensor configuration with multiple electromagnetic coils throughout both sensors to produce a magnetic field across the complete cross-sectional area of the pipe. The sensor body is hermetically sealed and protected by NSF-certified, fusion-bonded epoxy coating.

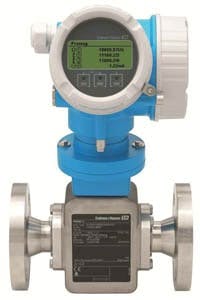

Proline Promag 200 two-wire magmeters offer the same performance as four-wire devices, lower installed cost and intrinsic safety. Available in line sizes of 1/12 to 8 in., they measure flows of conductive fluids with an accuracy of ±0.5% and repeatability of ±0.2% of range. Output options are two-wire HART or pulse/frequency/switch, and no separate power source is required.

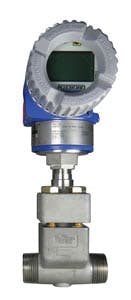

Foxboro 84 Series MNPT vortex flowmeter reduces maintenance costs with no moving parts and a lifetime warranty. MNPT connection, 40:1 turndown, HART communications, patented flexible tuning and accuracy within 1.0% of reading in liquids, gas and steam make them suitable for direct replacement of turbine, magnetic flow and orifice meters.
Fluxus F/G 7407.316 SE ultrasonic liquid and gas clamp-on flowmeters allow precise, bi-directional, dynamic measurement of volume and mass flow rates of any gas and liquid media, including wet gas (up to a liquid volume fraction of 5%) or liquids carrying high solids contents. They’re FM Class I, Div. 2-certified for hazardous areas. Transducers for FM Class I, Div. 1 and 2 are available.
Micro Motion Elite CMFS sensor platform delivers precise measurement in pipelines less than 2 in. (DN50). Nine sensor sizes in three compact footprints deliver ±0.05% liquid flow mass and volume accuracy, ±0.25% gas accuracy and ±0.0002 g/cc density accuracy at rates of 0.04 to 1,980 lb/min (1 kg/h to 54,000 kg/h). Turndown ratios range up to 30:1.
Emerson Process Management
Polaris is an accurate, repeatable electromagnetic flowmeter that can measure liquids with a conductivity as low as 5 µS/cm in closed pipes, and is suitable for a variety of water and sludge flow applications. Its Polaris transmitter is backlit, rotatable and can measure forward and reverse flow rates as well as total volume. HART capability allows Polaris to use PACTware for configuration and diagnostics.
FL900AV flowmeters with AV9000 analyzer modules acquire flow data in difficult sites. Advanced signal processing and filtering provide cleaner, precise data, expanding the applicability of submerged area/velocity (AV) sensors into difficult applications. They also have on-site verification of performance via advanced diagnostics, step-by-step calibration guides and dynamic logging intervals.
Hach Co. Flow Products & Services
This small, dual-bent-tube, self-draining Coriolis mass flowmeter, RotaMass LR, is due to be released on Aug. 15. It will measure both liquids and gases and has an effective turndown of no less than 2,000:1 for liquids and 5,000:1 for gases. Its mass flow measurement range spans from 10.5 g/h up to 40 kg/h, achieving a measurement accuracy of ±0.15% reading for liquids and ±0.5% for gases.
Yokogawa Electric Corp.
USM GT400 ultrasonic flowmeter uses multi-path measuring technology, field-proven electronics, sophisticated diagnostics and a user-friendly interface to measure natural gas volume at every stage of its movement, storage and utilization, as well as track gas movement through pipelines. It complies with CEESmaRT condition-based monitoring and provides stability during flow perturbations.
Honeywell Process Solutions
