Flue Gas Analyzers, Gas Chromatographs, Analyzer Flow Switch/Monitors and More
ANALYZER FLOW SWITCH/MONITOR Model FS10A analyzer flow switch/monitor is designed for use with nearly all process and emissions sampling systems, including gas chromatographs, mass spectrometers, optical spectrometers and photo-meters. Standard configurations will accommodate 1/8-, ¼-, 3/8- and ½-inch sampling tubes and an SP76 adapter. It now has FM and FMc approvals. Fluid Components International 800-854-1993 www.fluidcomponents.com
PORTABLE FLUE GAS ANALYZER Lancom 4 compact portable flue gas analyzer can monitor up to nine different gases and 17 measurement parameters. It weighs less than 15 pounds, and is housed in a single robust enclosure for use in harsh boiler and stack environments. It supports multiple languages and measures CO (Low), CO (High), O2, CO2, NO2, SO2, H2S and total hydrocarbons. Ametek Land 412-826-4444 www.ametek-land.com

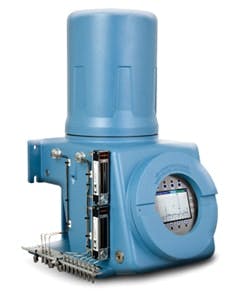

EXTREME GAS CHROMATOGRAPHY The Rosemount Analytical 700XA gas chromatograph provides extended analysis for extreme conditions. With a redesigned enclosure, the 700XA offers efficient use of oven space to accommodate both micro-packed and capillary columns, as many as four 10-port valves, a rotary valve for liquid injections, up to two thermal conductivity detectors and other features. Rosemount Analytical 800-854-8257 www.rosemountanalytical.com
TOUCHSCREEN GAS CHROMATOGRAPH PGC5000 series process gas chromatographs now come with a new touchscreen. The front panel is the standard configuration for the PGC5000A master controller. Upgrade kits are available for all PGC5000As installed in the field. The panel fully integrates into the current design, and provides redundant local user interfaces with the integrated mouse touch pad. ABB Measurement 304-647-1761 www.abb.com/measurement

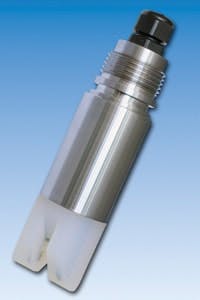

OPTICAL ABSORPTION SENSOR OUSAF11 sensor measures optical absorbance by a process fluid. OUSAF11 is ideal for product loss detection, interface detection and suspended solids and turbidity measurements. It’s available in an immersion or an insertion model with Tri-Clamp or Varivent connections that meet 3A sanitary standards. It can run continuously up to 194 ºF (90 ºC), and up to 266 ºF for up to two hours. Endress+Hauser 888-ENDRESS www.us.endress.com
REDUCE TIME DELAY Swagelok Fast Loop Module (FLM) helps reduce time delay in online analyzer systems. Part of the Swagelok Pre-Engineered Subsystems series, FLM is predesigned and preassembled for off-the-shelf installation into fluid sampling and control systems. It is designed to handle long transport lines from tap to analyzer, while minimizing pressure drop for faster response time. Swagelok www.swagelok.com
COLORFUL GAS CHROMATOGRAPH Maxum Edition II gas chromatographs now have a new modular oven and an operator panel with a 10-in. color touch display. It is backward- compatible. The graphical interface provides improved, intuitive menu navigation. Chromatograms are easy to edit using the touch screen. The touchscreen is certified for use in hazardous areas according to CSA Div. I and ATEX Zone 1. Siemens www.siemens.com/maxum
[javascriptSnippet]
COMBUSTION EMISSIONS ANALYZER E8500 combustion analyzer includes electrochemical sensors for O2, CO, NO, NO2, SO2 and H2S; NDIR sensors for CO2, CxHy and CO; low NOx- and true NOx-capable; real-time software; wireless remote printer; internal thermoelectric chiller with condensate removal; stack gas and ambient air temperature measurements; and draft and differential pressure measurements. E-Instruments International 215-750-1212 www.E-Inst.com
ALL-IN-ONE INDUSTRIAL TRANSMITTER HF8 humidity and temperature transmitters have measurement accuracy of 0.8% RH and 0.1 ˚C, and measure humidity ranges from 0 to 100% RH and overall temperature ranges of -100 ˚C to +200 ˚C. They have four analog outputs and four alarm relays programmable to any probe input and probe parameter. Optional digital outputs enable Ethernet and PoE connections. Rotronic 631-427-3898 www.rotronic-usa.com
ACCURATE OXYGEN MEASUREMENT TDLS220 measures percent level oxygen with no interference from background gases. Tunable diode laser spectroscopy (TDLS) technology is used for critical gas measurements, including oxygen and CO concentrations for combustion control; detecting ammonia and hydrochloric acid in exhaust gas; and monitoring ppm moisture levels in aggressive gas streams. Yokogawa Corp. of America 800-888-6400 www.yokogawa.com
PURGE CONTROLLER The ePurge X is a purge controller with fully automated purge and pressurization functions. Its digital mass flow sensor self-regulates purge duration. The purge pressure range is minimum 4 bar (60 psi) and maximum 8 bar (115 psi). The operating temperature range is -20 °C to 55 °C. ePurge X is certified in hazardous areas to NEC Class 1, Division 1, Groups C, D and IEC Zone 1, Group IIB. Applied Analytics 978-287-4222 www.a-a-inc.com
PRECISION MOISTURE ANALYZERS Computrac precision moisture analysis analyzers and Jerome toxic gas detectors are used in quality control, industrial process control and environmental monitoring applications. Arizona Instrument provides complete customer service, including on-site service and calibration. In addition, AZI will test samples for feasibility, provide free trials and 24-hour technical support. Arizona Instrument 800-290-1414 www.azic.com
