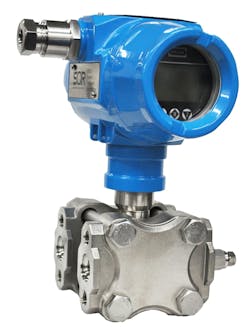

1800DP differential pressure transmitters provide accurate measurement for flow applications ranging from -0.87 psid to +0.87 psid through -72.5 psid to 1,450 psid. With a standard ±0.1% accuracy, these conventional transmitters are ideal for continuous process monitoring and intrinsically safe applications. They also feature:
- 4-20 mA with optional HART, 1-5 VDC low power or Modbus outputs;
- ±0.075% accuracy (FS);
- Aluminum, explosion proof housing
- Integral LCD display;
- EMC (EMI/RFI) protection;
- ATEX/IECEx certified for intrinsically safe and flameproof applications;
- CSA certified for explosion proof applications; and
- Three-year warranty
1800DP are available with three- or five-valve manifolds. All units include external pushbuttons for device setup and calibration, enabling users to configure them in hazardous areas. If ordered with the appropriate output, they can also be programmed using HART or Modbus protocols.
