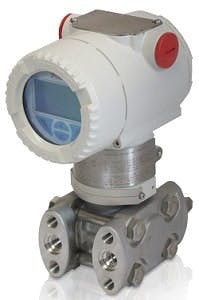

The 266 series pressure transmitter combines enhanced electronic pressure measurement with a unique HMI. The industry’s first through the glass (TTG) technology lets operators configure the transmitter without opening the cover—even in hazardous rated areas. The local HMI display makes configuring the transmitter as simple as working a cell phone.

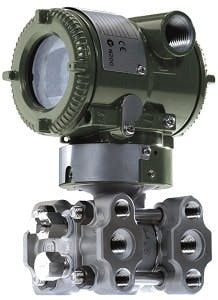

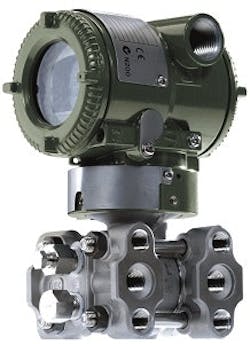

The enhanced DPharp EJA series transmitters have the same high-speed response and multi-sensing functionality as the high-end DPharp EJX series. They can simultaneously measure differential and static pressure, and have a response time of 90 ms. Compact/lightweight in design, they weigh 30% less than the non-enhanced version. They are IEC61508-compliant and certified to SIL 2.
Yokogawa Corp. of America
HIGH-TEMPERATURE/PRESSURE DATA LOGGER

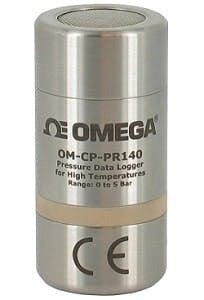

OM-CP-PR140 is a pressure data logger designed for use in autoclave validation and mapping. It can withstand temperatures up to 140 °C (284 °F), and is completely submersible (IP68). It’s built with a precision, stainless steel pressure gauge, and has an accuracy of ±0.03 bar (±0.435 psi), which can be achieved over a wide temperature range from 20 °C to 140 °C (68 °F to 284 °F).
DIGITAL PRESSURE SWITCH/TRANSMITTERS
ProSense digital pressure switch/transmitters are designed for air, non-corrosive and non-flammable gas applications. Fitted with a 2-meter cable, they feature a three-color LCD display, and two digital and one analog output. They have two vacuum-to-pressure ranges, selectable response times to eliminate chattering and a fast zero reset. They’re also cULus-, CE-, RoHS- and Reach-approved.
Rosemount 3051 products have improved performance, advanced diagnostics, wireless capabilities, user-friendly interfaces, selectable HART revisions and safety (SIL2/3) certification. They have a standard reference accuracy of ±0.04% of span down to a 10:1 turndown. New Power Advisory diagnostics can identify electrical loop issues before they cause on-scale failures.
Emerson Process Management
HAZARDOUS-DUTY PRESSURE TRANSDUCERS

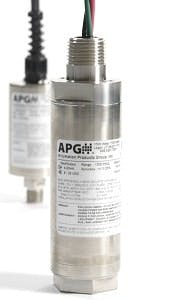

PT-400 heavy-duty pressure transducers have received ATEX and IECEx certifications, and are rated EX II 1G Ex ia IIB T4 Ga for use in hazardous locations worldwide. They provide a minimum of 10 million operating cycles with high accuracy up to ±0.1% F.S. (B.F.S.L.), in operating temperatures from -40 °F to 180 °F. They cover pressures ranging from 0 psi to 20,000 psi.
Automation Products Group
PT4500 and PT4510 submersible pressure transmitters are optimized for detecting the level of water or other media with similar density in challenging industrial environments such as wastewater, irrigation systems and tanks containing gas and diesel. These IP 68-rated, stainless steel pressure transmitters carry UL/cUL 913 approval for use in Class I, Division 1, Groups C and D locations.
Ashcroft A2, A2X and A4 pressure transmitters are accurate, rugged, reliable heavy-duty sensors. Available in accuracies up to ±0.25% FS, A2 is offered with a wide variety of electrical connections, analog output signals and pressure ports for most industrial applications. A2X (explosion/flame-proof) and A4 (intrinsically safe) configurations are designed for hazardous environments.
To service surface and subsea installations, process instrumentation and controls, chemical injection and testing equipment applications, IPT series products include precision valves, fittings and fluid control devices suitable for surface and subsea installation, instrumentation, injection and sampling systems. Products in the IPT series are made standard from cold-worked, 316 stainless steel.
Model AST46PT explosion-proof pressure/temperature transmitter offers pressure and temperature measurements of ±0.1% and 1.0% BFSL, respectively. Available in temperature ranges from -40 °F to 250 °F (-40 °C to 125 °C) and pressure ranges up to 20,000 psi (1400 bar). It is CSA-approved for hazardous areas including Class 1 Div 1 Explosion-proof Groups A, B, C and D.
American Sensor Technologies Inc.
The 805QS is a compact, loop-powered pressure switch/transmitter ideal for the oil and gas industry, where hazardous locations and hostile environments are common. It is explosion-proof, hermetically sealed, and enclosed in a stainless steel housing. An optional flush diaphragm seal is available, and is designed to prevent substances from clogging the pressure port.

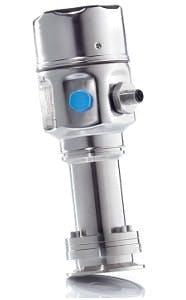

Cerabar M PMC51 and PMP51 pressure transmitters are suitable for accurate absolute and gauge pressure measurements in gases, steams or liquids, and for level, volume or mass measurements in liquids. Standard accuracy is 0.15% with 0.075% accuracy available as an option. They are available with ceramic or metal process isolating diaphragm seals for work in temps to 752 ºF or pressures to 6000 psi.
PORTABLE PRESSURE CALIBRATION
Beta DPC-300A is a rugged, dual-pressure system calibrator that uses plant air or an internal electric pump up to 300 psi (20 bar) for the calibration of gauges, P/I transmitters, controllers, switches and recorders. A built-in loop calibrator is accurate up to 0.015% reading and provides 24-VDC power. It has long-life, rechargeable NiMH batteries and an intuitive graphic panel.
One Series Smart transmitter-switch monitors gage and differential pressure. Designed for diverse OEM needs, it features a scalable 4-20 mA output, plug port detection, a programmable solid-state relay for alarm and shutdown. Built-in global approvals simplfy shipment to any region of the world. It has self-diagnostics, 60-millisecond response and SIL 2 suitability.
United Electric Controls
The compact M1500 pressure transmitter is ideal for pressure measurement needs from 10-in. H20 to 3000 psi full scale. Output options include digital (RS-232, RS-485 and USB) or analog (mA or VDC). Choose from differential (dry/dry or wet/wet), gauge, compound or absolute pressure types. Typical NIST-traceable digital accuracy is ±0.025% of full scale.
Meriam Process Technologies
T-975-CPF pneumatic hand pump generates pressure and vacuum. T-620H-CPF high-pressure, hydraulic hand pump provides a compact pressure source. P-018-CPF hydraulic comparator produces pressure with superior control. Model T-1-CPF high-volume hydraulic comparator is ideal for testing and calibrating pressure gauges, relief valves and pressure switches.
Crystal Engineering Unit of Ametek

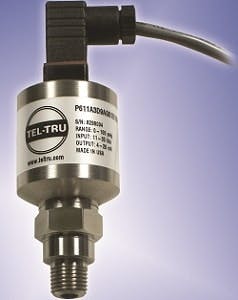

Tel-Tru Model P611 pressure transmitter features a single-piece, 316L stainless steel sensing element with a high output silicon-glass, fused strain gauge, coupled with a thick diaphragm. This combination maximizes cycle life even in the presence of pressure spikes, vibration and aggressive fluid media. In keeping with Tel-Tru’s trademark quality and service, it comes with a three-year warranty.

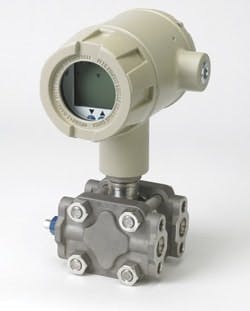

ST 3000 Series 900 differential pressure transmitters bring proven, smart technology to pressure measurement applications from furnace combustion airflow rate to hydrostatic tank gauging. They can be used with any primary flow element to provide repeatable flow measurement and offer greater turndown ratio than conventional transmitters. They can be used in hazardous environments.
Honeywell Process Solutions
