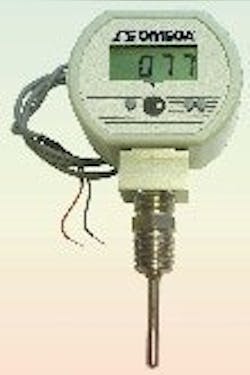

Temperature transmitter with display and RTD sensor

Temperature Transmitter
The PRTXD Series are two-wire transmitters that provide a 4 to 20 mA signal representing temperature. The units include a 3-1/2 digit display and RTD sensor. The NEMA 4X (IP66) housing protects the electronics. Units are available with spring-loaded probes for use with thermowells.

  • Controls: Non-interactive zero and span, ±10% range,Test calibration level; 0 to100% range.
  • Display: 3-1/2 digit LCD, 1/2" digit height, 3 readings per second nominal display update rate.
  • Sensor: 100 RTD element, 0.00385 alpha coefficient IEC-751 Class B: ±0.3°C at 0°C, ±1.1°C at 150°C.
  • Test Function: Front panel TEST button when held, sets loop current and display to test calibration level, independent of temperature input, to allow testing of system operation.
  • 1/2" NPT male hex nipple, 316 stainless steel probe sheath.
