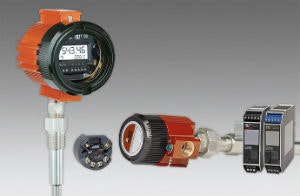

The THZ3 and TDZ3 mark the next generation of Smart HART temperature transmitters from Moore Industries. They feature our industry-leading durability and reliability combined with new features that increase usability and functionality including a new dual sensor input.
These transmitters provide an isolated and linear 4-20mA output proportional to input and configure easily to accept a direct signal input from a wide array of sensors and analog devices. You can build custom curves with up to 128 points for non-standard or special inputs.
Dual Input
Dual sensor input means that you get backup and fail-over protection because the transmitters allow either of the sensors or inputs to be designated as the primary measurement and the secondary input acting as a backup sensor in case of primary sensor failure. Unlike other dual input transmitters, the THZ3 and TDZ3 offer auto-recovery after a fail-over event by automatically re-designating the new sensor as the PV without operator intervention. Additional dual input features include:
• Average and differential measurement
• High-Select and Low-Select
• Dynamic variable mapping
Advanced Control and Monitoring
The THZ3 and TDZ3 come with Device Intelligence, a series of features for smarter control and monitoring including sensor drift, corrosion detection, smart range alarms, and a high availability option.
For more information, please visit the Moore Industries website.
