Acromag NT2510 and NT2530 Ethernet remote I/O modules

Jan. 17, 2023

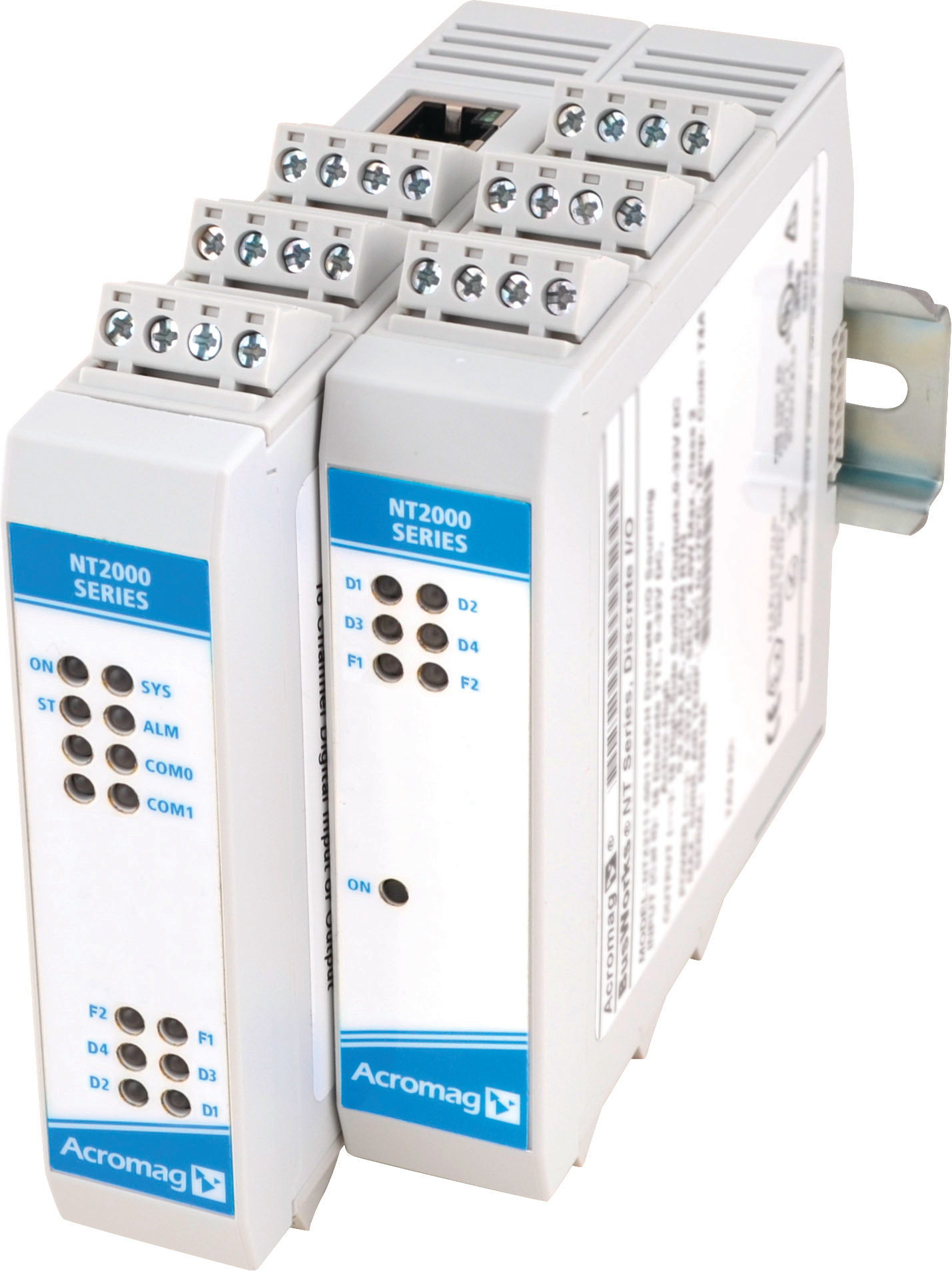

Acromag released two new Ethernet remote Input/Output (I/O) modules, the NT2510 and NT2530, as part of its Busworks NT Series. These modules are designed for monitoring and controlling analog and discrete signals in industrial applications. Eight models have bidirectional discrete I/O, voltage or current analog inputs, and optional analog current outputs. NTE modules have dual RJ45 ports and a web server with field-selectable Modbus TCP/IP or EtherNet/IPTM communication. They also have an integrated DIN rail bus that allows up to three NTX expansion I/O modules to be connected, and a space-saving design that requires only 25mm of DIN rail per module. The modules are suitable for use in harsh environments, with hazardous location approvals, high noise immunity, and a temperature range of -40 to 70°C. They can function as a network client or use Acromag's i2o peer-to-peer communication technology to transfer data directly between modules without the need for a host or server. The modules also have multicast capability and support conditional logic.

Each module will support multiple protocols which are selectable using any web browser to configure the network settings and I/O operation. The modules typically function as a network client, but also offer Acromag’s i2o peer-to-peer communication technology to transfer data between modules directly without a host or server in between. Multicast capability and conditional logic are included.
