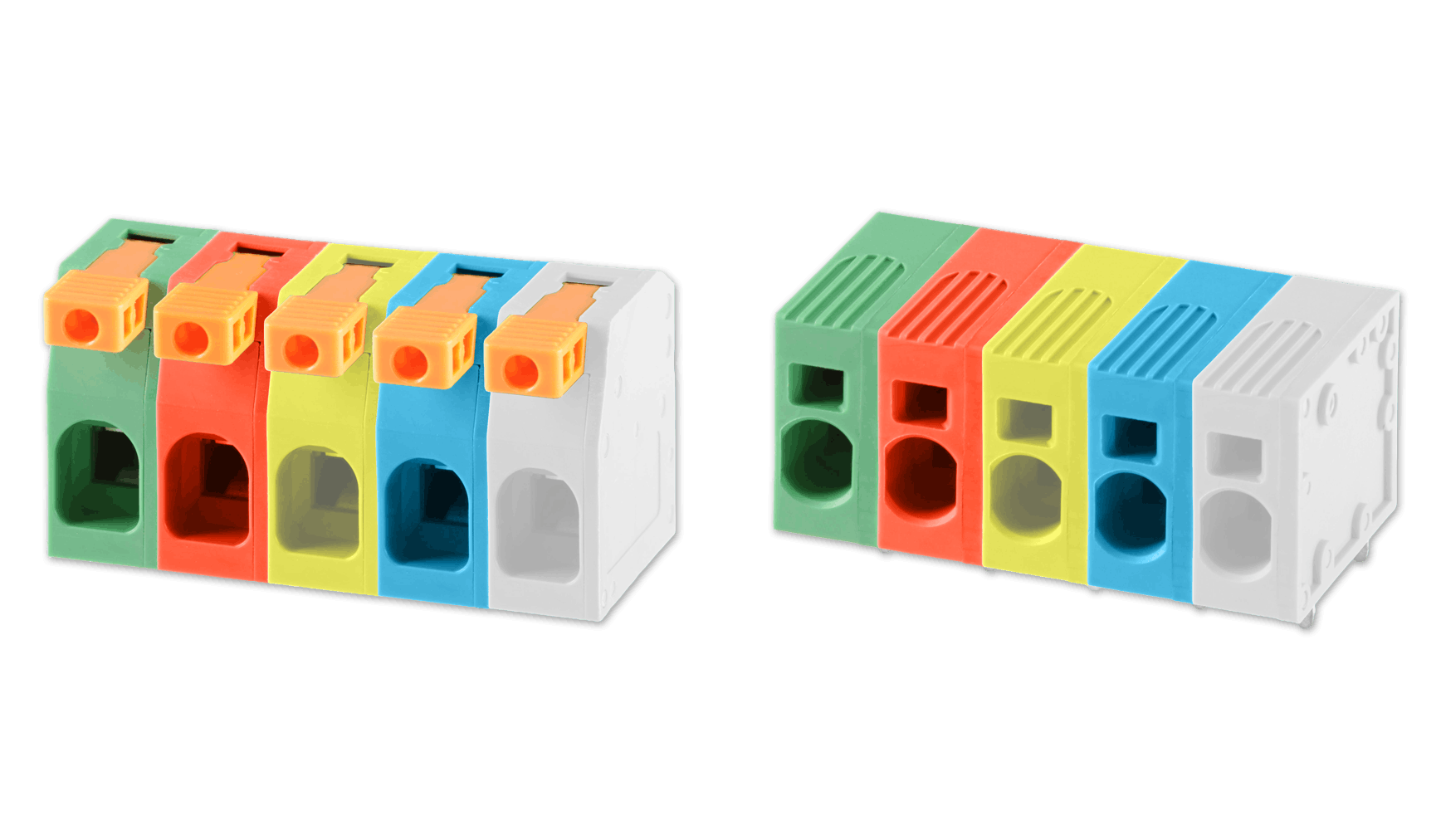

Single-position terminal blocks with mix-and-match colors

Single-position, screwless terminal blocks with blue, green, red, white and yellow colors can be mixed to create color-coded wire connections. TBL-0014-750, TBL-0015-750 and TBL-0016-1000 series feature a push-in spring or lever-actuated connection for simpler wire terminations, 7.50 mm or 10 mm pitches, and one to six position options. Their receptacles support wire gauges from 24 to 8 AWG and operating temperatures from -40 °C to 105 °C. Available in horizontal (TBL-0015-750 / TBL-0016-1000) or vertical (TBL-0014-750) orientations, they carry 40 A or 51 A UL current ratings, 41 A or 76 A IEC current ratings, 600 Vdc UL voltage ratings, and 800 Vdc or 1,000 Vdc IEC voltage ratings.

CUI Devices
