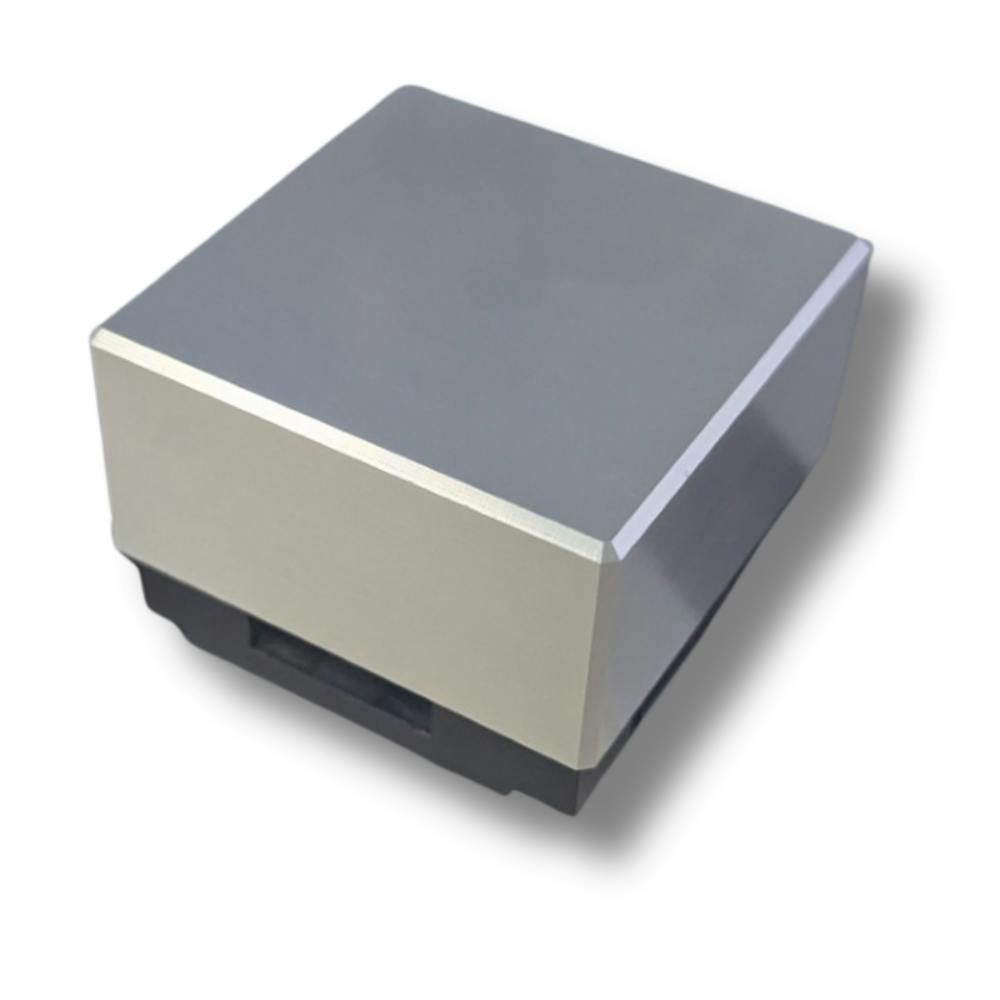

Space-saving, efficient, power factor correction chokes
PFC282820 Series power factor correction (PFC) chokes are built for 800 W to 5,000 W continuous conduction mode PFC boost converter applications in high-wattage industrial and automotive systems.
Featuring a compact 27.5 x 20 mm footprint with a height of just 28.5 mm, PFC282820 delivers robust performance in a small package. A wider configuration (27.5 x 28.5 mm) is also available to support higher current handling needs, all within the same 5,000 W power ceiling.
PFC282820 also uses a flat wire and a square core to deliver enhanced power density and thermal performance compared to traditional toroidal alternatives. The series is engineered to support the evolving requirements of AC to DC power conversion.
PFC282820 also supports 33-330 μH inductance ranges, and can provide custom values as needed. High-current output options can handle up to 46 A, with approximately 50% roll off for superior performance under load.
